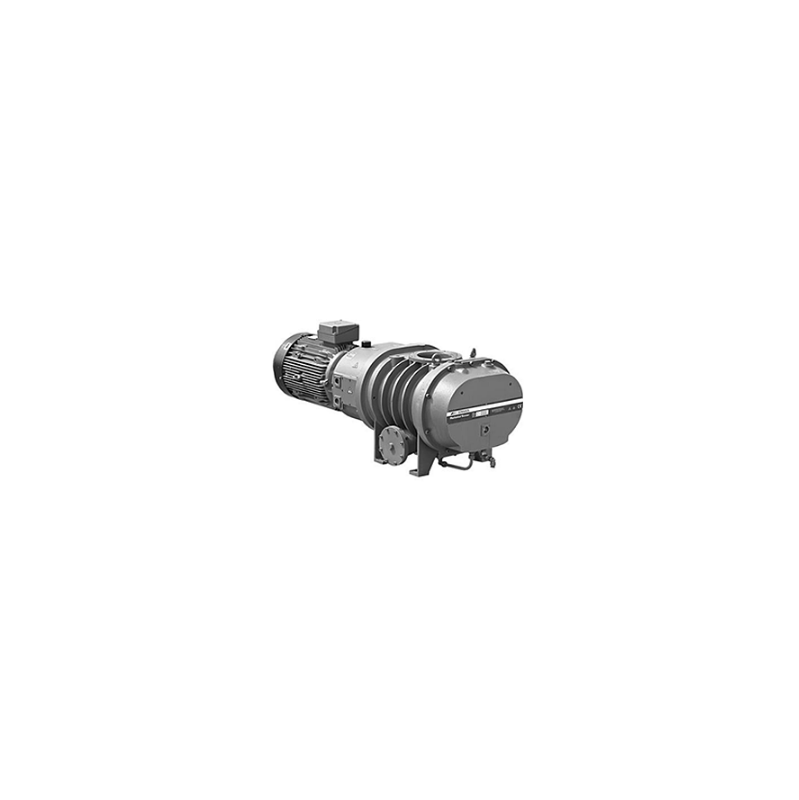

Atlas Copco ZRS 2600 HC IE3 EU/CN 50HZ 380-400V 50HZ
HVC-8153312197
- Performance – fast pump down time due to unique hydrokinetic drive.
- Stable operation – optimised clearances and after coolers.
- Simplicity – Continuous operation at all pressures.
- Simple installation – no need for pressure switches, bypass lines or variable frequency drives.
- Reliability – automatic overload protection
- Safe operation – automatic overload protection.
- proven shaft seal design to protect pumping mechanism and gearbox from cross-contamination.
- High uptime and low maintenance – internal evacuation of gearboxes extends shaft seal life.
Hydrocarbon Prepared – HC
Standard pump for use with Ultragrade oil. Oil supplied with the pump
- Pump Model
- ZRS2600 HC
- Voltage & Phases
- 380-400 VAC, 50HZ 3-Ø
- Nominal Pumping Speed
- 1750-1900 m³/h
- Cooling Method
- Water
- Inlet Flange
- ISO 160
- Outlet Flange
- ISO 100
