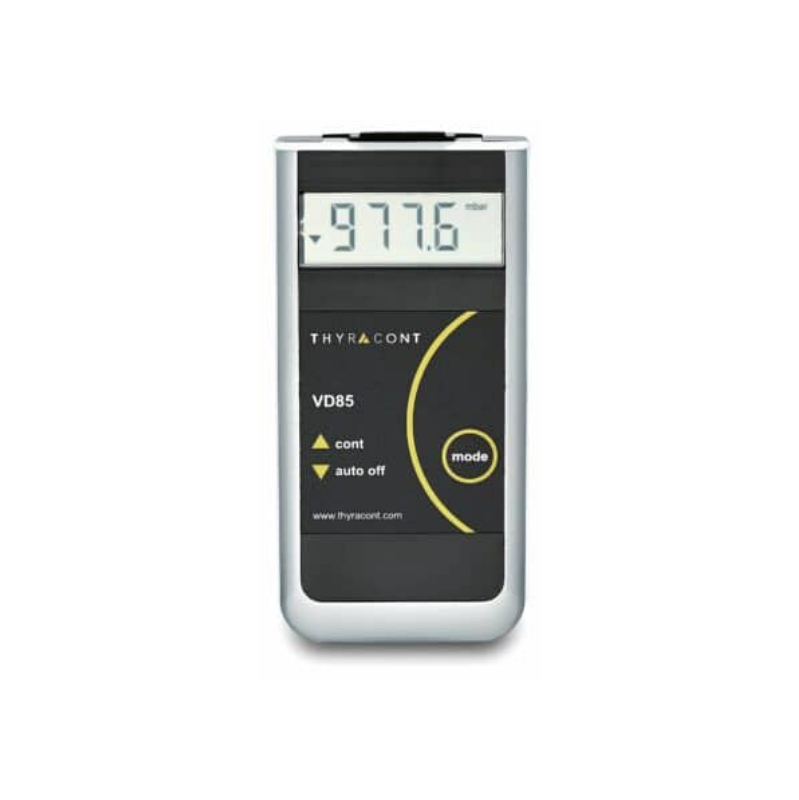

Thyracont VD85 Compact Vacuum Meter ● Piezo/Pirani ● 1200 to 5e-4 mbar
Wide measuring range: Wide measuring range due to combined piezo/Pirani sensor, ideal e. g. for the maintenance of vacuum pumps and systems
Long therm stable: Excellent long term stability
Long-lasting: Pirani sensor with durable, elastic helix filament
Temperature compensated: Stable measuring values due to optimized temperature compensation
Well protected: Integrated data logger for up to 2000 measurement values
Overview VD8 vacuum meters:
Variable: VD8 compact vacuum meters can be used as a portable instrument or for permanent installation in vacuum facilities. The gauges can be operated by a battery or a plugin power supply
Data logger: Integrated data logger for up to 2000 measurement values
Flexible connection: VD8 vacuum meters can be placed directly into a vacuum chamber, connected to an appliance with their flange or with a suitable adaptor
Min/Max memory function: Storage of minimum and maximum pressures achieved during measurement
Long battery livetime: Due to cycled measurements, the compact vacuum meter reaches a high battery lifetime; the user can choose between automatic switch off (time adjustable) for battery saving or continuous operation
Pressure units: mbar, Torr, hPa
Data export: USB interface for easy push button data transfer to PCs, but no PC connection is necessary during measurements
VacuGraphTM Windows Software: To visualize, analyze and save measurements on a PC (lite version free of charge)
- Type
- Piezo/Pirani gauge
- Measuring range
- 1200 - 5x10-4 mbar
- Gauge model
- VD85
- Flange
- DN16 ISO KF, G1/4 internal thread
