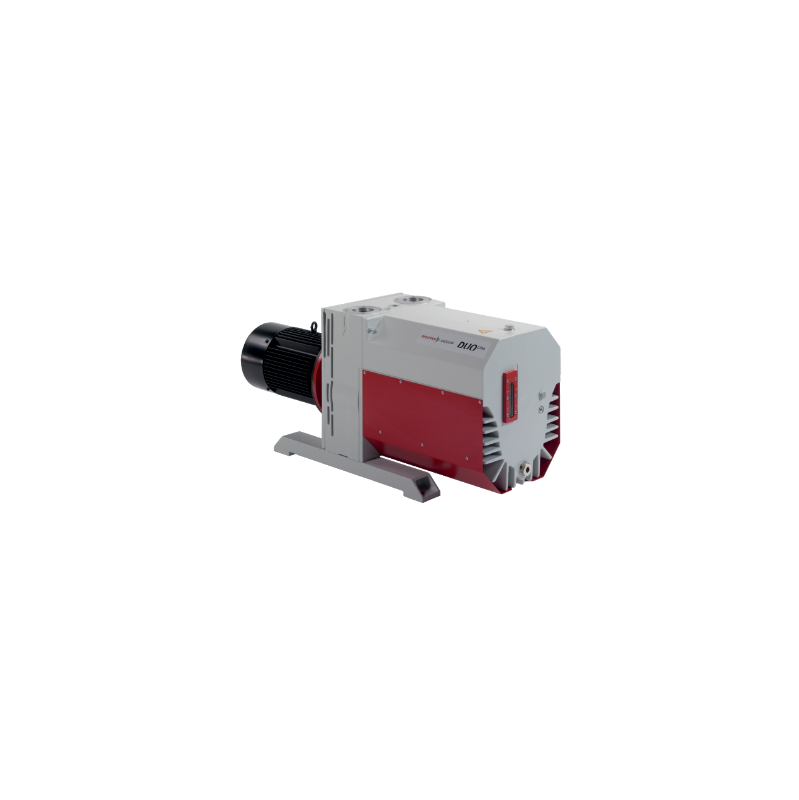

Pfeiffer Duo 255 (250 m3/h)
HVC-PKD48602
- Dual-stage, high-performance rotary vane pump with a pumping speed up to 300 m3/h
- 3-phase motor for 230/400 V (± 5 %) 50 Hz or 265/460 V (± 5 %) 60 Hz supply voltages
- With temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Special feature: Various motor voltages for worldwide employment
- Other motor voltages available on request
- Pump Model
- Duo 255
- Voltage & Phases
- 230-400 VAC 3-Ø
- Pumping Speed
- 250 m³/h
- Final Pressure
- 3 · 10-3 hPa
- Dual-stage, high-performance rotary vane pump with a pumping speed up to 300 m3/h
- 3-phase motor for 230/400 V (± 5 %) 50 Hz or 265/460 V (± 5 %) 60 Hz supply voltages
- With temperature sensor (3TF) for optimum motor protection
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Special feature: Various motor voltages for worldwide employment
- Other motor voltages available on request
