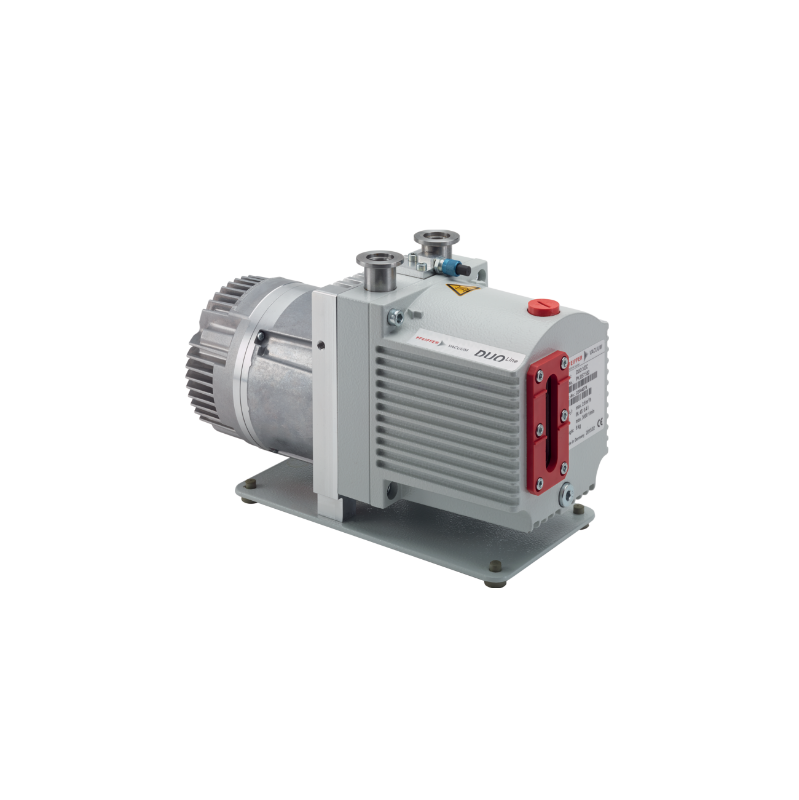

Pfeiffer Duo 3 24V DC (2.5 m3/h)
HVC-PKD57553
- Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h
- With 24 V DC-drive
- Integrated gas ballast and safety valve
- To connect pump with power supply TPS 310, connector plug P 4723 102 is necessary
- Suitable for operation with the wide range of temperature from -20 to +40 °C
- Very low noise level 53 dB (A) allows installation close to a work space
- Lowcost of ownership due to power consumption < 100 W
- Low maintenance due to brushless drive and optional magnetic coupling
- Easy installation and small footprint
- Pump Model
- Duo 3 24V DC
- Voltage & Phases
- 24 VDC
- Pumping Speed
- 2.5 m³/h
- Final Pressure
- 3 · 10-3 hPa
- Dual-stage, high-performance rotary vane pump with a pumping speed of 2.5 m3/h
- With 24 V DC-drive
- Integrated gas ballast and safety valve
- To connect pump with power supply TPS 310, connector plug P 4723 102 is necessary
- Suitable for operation with the wide range of temperature from -20 to +40 °C
- Very low noise level 53 dB (A) allows installation close to a work space
- Lowcost of ownership due to power consumption < 100 W
- Low maintenance due to brushless drive and optional magnetic coupling
- Easy installation and small footprint
