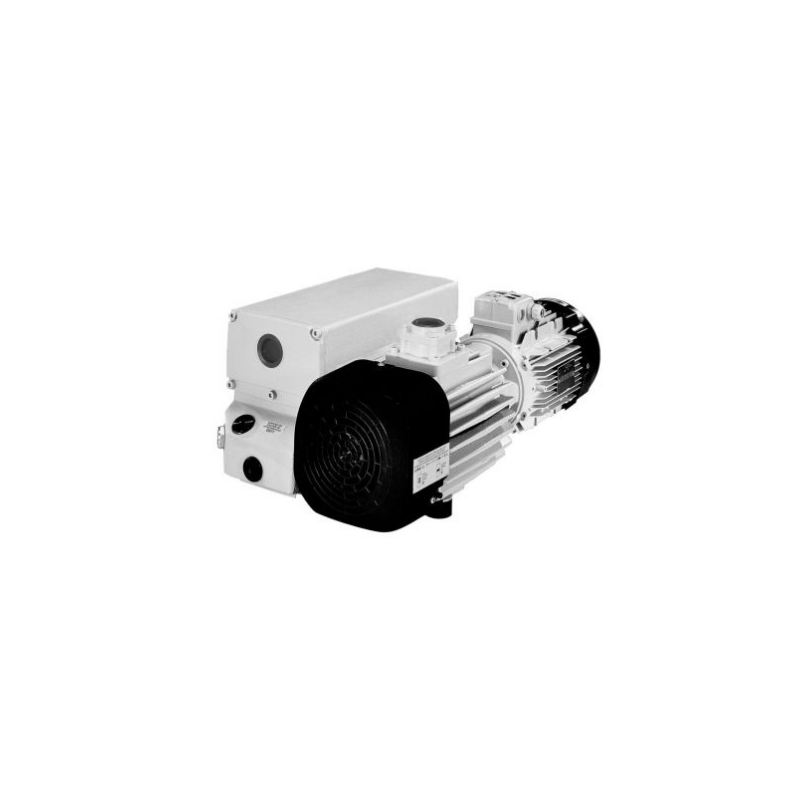

Leybold SOGEVAC SV 100 B, 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz
HVC-960500-2
Leybold SOGEVAC SV 100 B, 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz
■ Compact design and small footprint
■ Very low and constant noise level in any working condition
■ Integrated functions, no external pipe
■ No motor coupling up to SV65 B
■ Variant concept / specific customer configurations
■ ATEX versions for categories 2 and 3, from SV40 B to SV100 B
■ Simplified maintenance
- Pump Model
- SV 100 B
- Voltage & Phases
- 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz
- Pumping Speed
- 98 / 117 m3/h
- Final Pressure
- 0.5 mbar
- Inlet Flange
- G 1 1/4" internal thread
- Gas ballast
- Small
- Oil filter
- No
Leybold SOGEVAC SV 100 B, 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz
■ Compact design and small footprint
■ Very low and constant noise level in any working condition
■ Integrated functions, no external pipe
■ No motor coupling up to SV65 B
■ Variant concept / specific customer configurations
■ ATEX versions for categories 2 and 3, from SV40 B to SV100 B
■ Simplified maintenance
