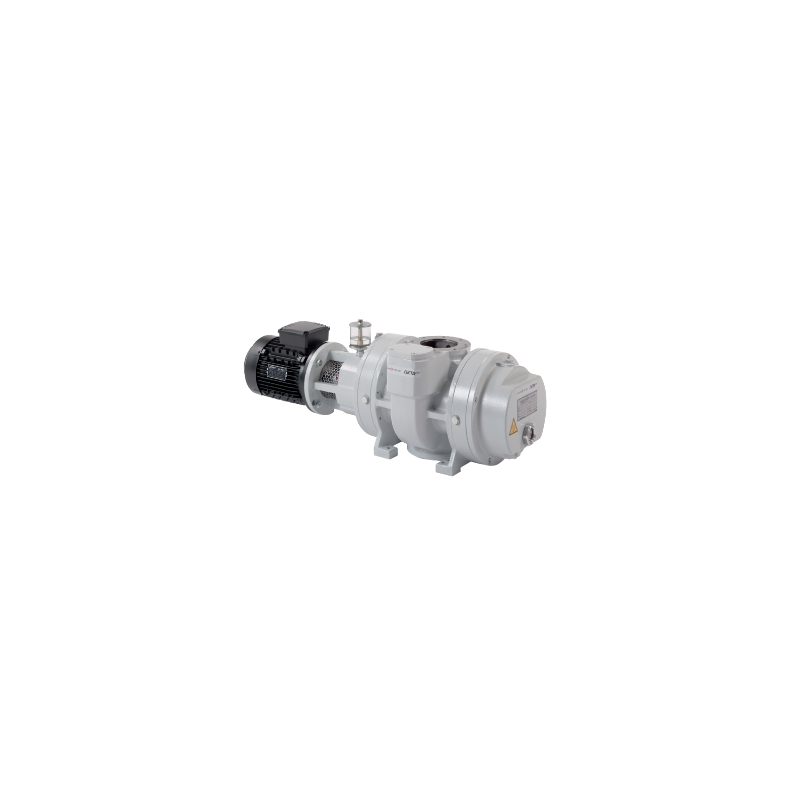

Pfeiffer Okta 1000
HVC-PPW41000
- High-performance Roots pump with a pumping speed of 590 to 1775 m3/h
- For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
- No thermal overload thanks to integrated overflow valve
- For applications in the low and medium vacuum
- Pump Model
- Okta 1000
- Voltage & Phases
- 230-400 VAC, 50HZ 3-Ø
- Nominal Pumping Speed
- 590-1775 m³/h
- Cooling Method
- Air
- Inlet Flange
- DN 160 ISO-F
- Outlet Flange
- DN 100 ISO-F
- Mounting Orientation
- 0° (HV flange top)
- High-performance Roots pump with a pumping speed of 590 to 1775 m3/h
- For mains voltage: 230/400 V, 50 Hz respectively 265/460 V, 60 Hz
- No thermal overload thanks to integrated overflow valve
- For applications in the low and medium vacuum
