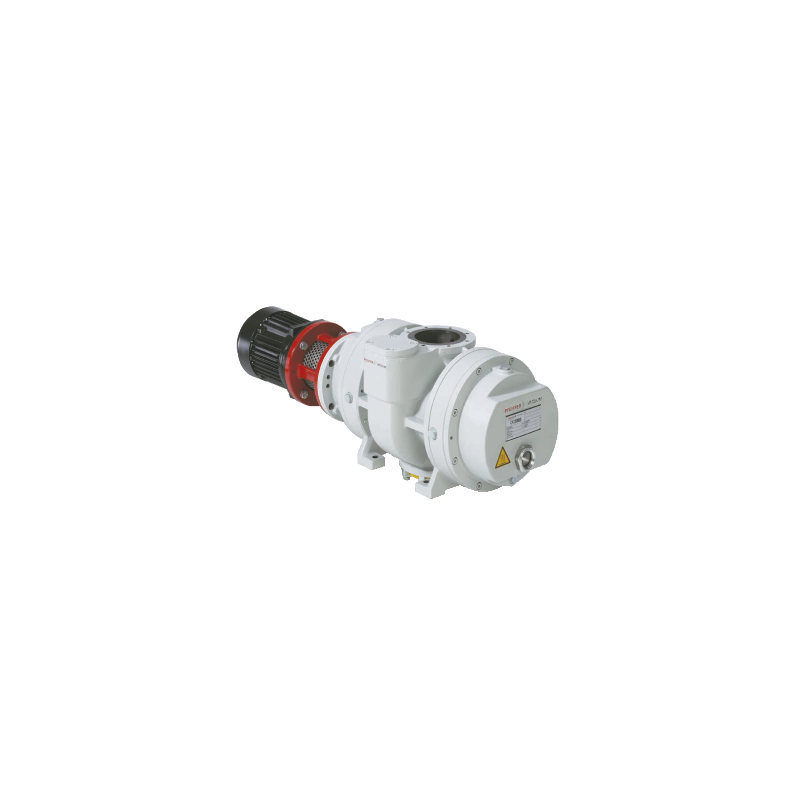

Pfeiffer Okta 500 M
HVC-PPW32000
- High-performance roots vacuum pump with a pumping speed of 280 to 840 m3/h and magnetic coupling
- With 3-phase motor, IE3
- No thermal overload thanks to integrated overflow valve
- For applications in the low and medium vacuum
- Pump Model
- Okta 500 M
- Voltage & Phases
- 230-400 VAC, 50HZ 3-Ø
- Nominal Pumping Speed
- 280-840 m³/h
- Cooling Method
- Air
- Inlet Flange
- DN 100 ISO-F
- Outlet Flange
- DN 100 ISO-F
- Mounting Orientation
- 0° (HV flange top)
- High-performance roots vacuum pump with a pumping speed of 280 to 840 m3/h and magnetic coupling
- With 3-phase motor, IE3
- No thermal overload thanks to integrated overflow valve
- For applications in the low and medium vacuum
