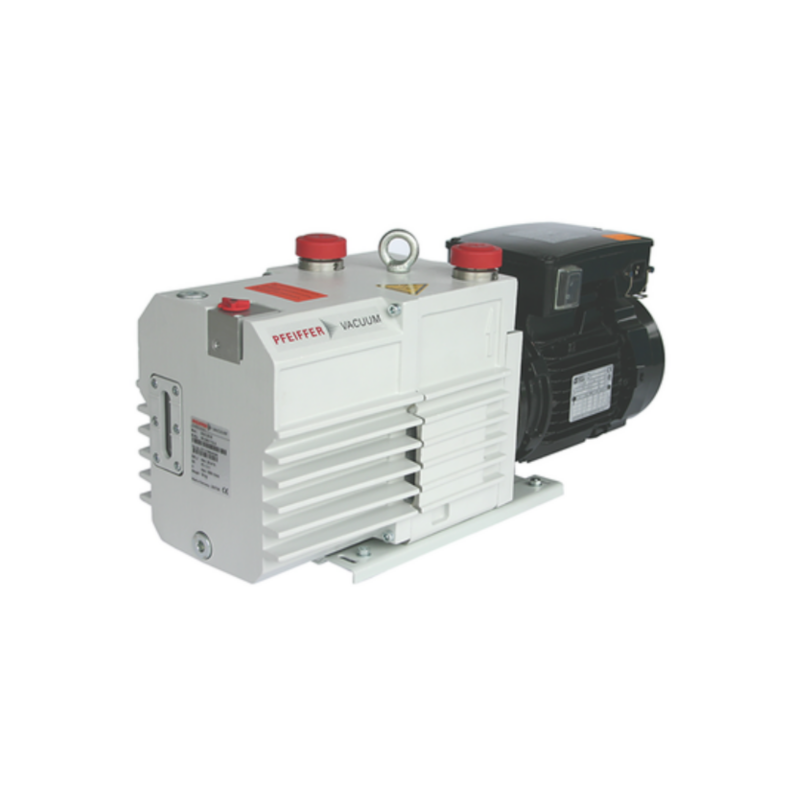

Pfeiffer Uno 30 M (30 m3/h)
HVC-PKD54712
- Single-stage, high-performance rotary vane pump with a pumping speed 30 m3/h at 50 Hz / 35 m3/h at 60 Hz
- With single-phase motor with C14 connector plug inside the terminal box
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Magnetically coupled
- Special feature: Various motor voltages for worldwide employment
- Other motor voltages available on request
- Pump Model
- Uno 30 M
- Voltage & Phases
- 230-400 VAC 3-Ø
- Pumping Speed
- 30 m³/h
- Final Pressure
- 5 · 10-2 hPa
- Single-stage, high-performance rotary vane pump with a pumping speed 30 m3/h at 50 Hz / 35 m3/h at 60 Hz
- With single-phase motor with C14 connector plug inside the terminal box
- Integrated gas ballast and HV safety valve
- For all low and medium vacuum applications
- Magnetically coupled
- Special feature: Various motor voltages for worldwide employment
- Other motor voltages available on request
