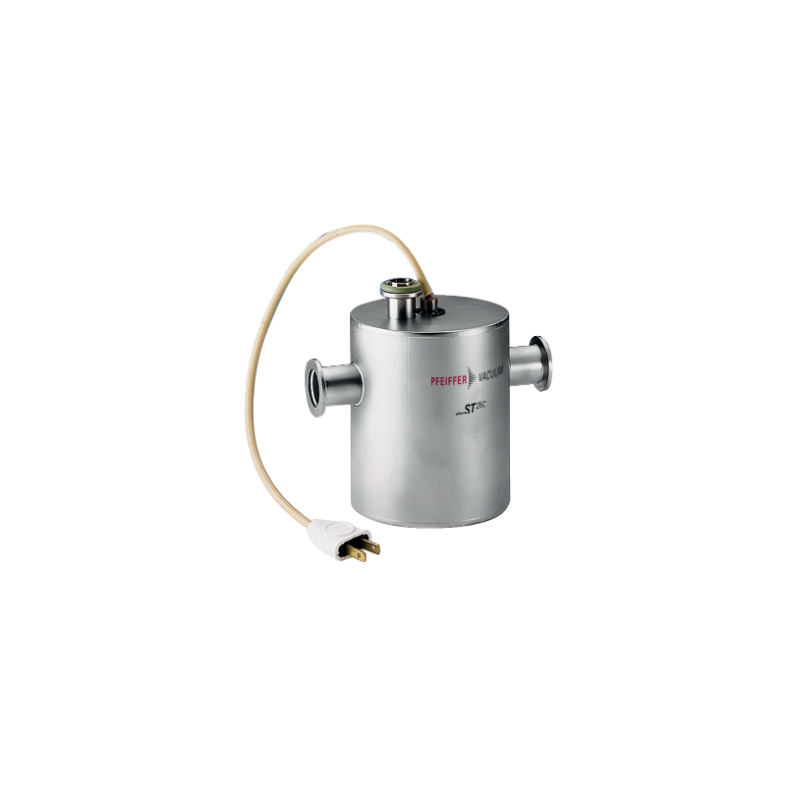

Pfeiffer Sorption Trap ST 40, 230 V
HVC-053380
- Body material: Stainless steel
- Cartridge material: Stainless steel
- Trap Weight: 1.7 kg
- Adsorbent Weight: 0.36 kg
- Inlet/Exhaust port: DN 40 ISO-KF
- Conductance at 10-2 hPa inlet pressure: 25 l/s
- Adsorbent charge: activated alumina: Order number 068779
- Adsorbent charge: zeolite: Order number 068182
- Heating element: 220 V Order number: 068319
- Supplied with: 1 centering ring and 1 clamp
- Trap is supplied with zeolite charge
- Type
- Sorption trap ST 40 C
- Inlet Flange
- DN 40-ISO-KF
- Outlet Flange
- DN 40-ISO-KF
- For pumping speed up to [m³/h]
- 70
- Body material: Stainless steel
- Cartridge material: Stainless steel
- Trap Weight: 1.7 kg
- Adsorbent Weight: 0.36 kg
- Inlet/Exhaust port: DN 40 ISO-KF
- Conductance at 10-2 hPa inlet pressure: 25 l/s
- Adsorbent charge: activated alumina: Order number 068779
- Adsorbent charge: zeolite: Order number 068182
- Heating element: 220 V Order number: 068319
- Supplied with: 1 centering ring and 1 clamp
- Trap is supplied with zeolite charge
