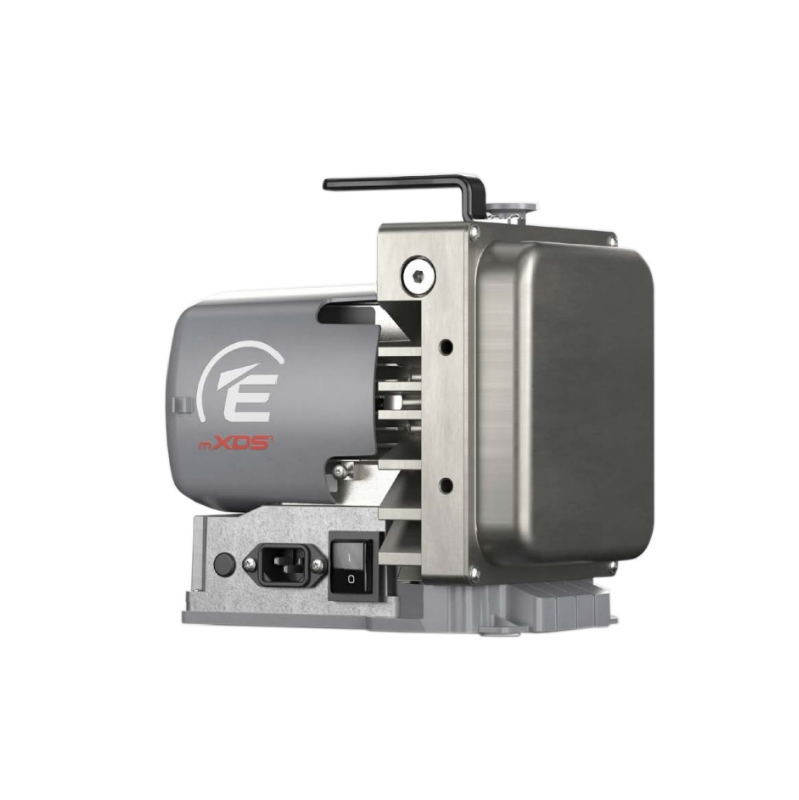

Edwards mXDS3 100V 1ph 50/60 Hz
Edwards range of small dry scroll pumps is expanding with the introduction of the compact mXDS3 and mXDS3s.
The new mXDS3 dry scroll pump delivers 3m3h-1 pumping speed together with an ultimate pressure of 0.1 mbar making it well suited for backing turbomolecular pumps. mXDS3 is the standard option supplied with no inlet valve fitted.
mXDS3s comes factory fitted with an inlet valve featuring delay opening. It is also supplied with an exhaust silencer. Both offer the same vacuum performance and feature an IEC connector for main supply and an on/off switch for easy control.
This compact dry pump offers flexibility to the system designer and end user alike with a wide range of accessories available to choose from to meet your configuration requirements.
- Pump Model
- mXDS3
- Voltage & Phases
- 100 VAC 1-Ø
- Pumping Speed
- 3 m³/h
- Final Pressure
- 1· 10-1 hPa
