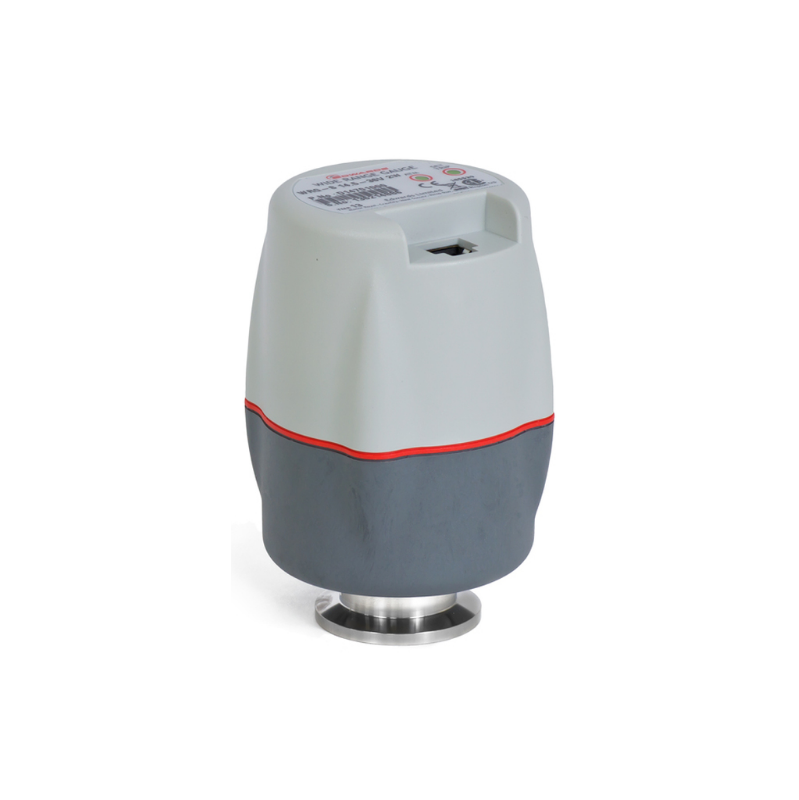

WRG-SL-NW25, Certificated
HVC-D1471100C
The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10-9 mbar with a linear output. Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a new patented striker, pushbutton calibration and set point controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the system controls.
Technical Data
| Pressure range | Atmosphere to 10-9 mbar/Torr |
| Accuracy * | Typically ±15% <100 mbar and ±30%<10-3 mbar |
| Maximum over pressure | 6 bar absolute (87 psia) |
| Power supply | +14.5 to +36 V d.c. |
| Power consumption | 2 W maximum |
| Output signal | 1.8 to 10.2 V d.c. |
| Adjustments | Atmosphere and setpoint |
| Set point | Open collector transistor |
| Maximum voltage | 40 V d.c. |
| Current | 100 mA maximum |
| Temperature range | |
| Operating | +5 to +60 oC |
| Storage | 0 to +70 oC |
| Materials exposed to vacuum (Both NW and CF versions) | Stainless steel (AISI 304, 316, 321, 347), Fluoroelastomer, soda lime glass, Tungsten, trace of Nickel and Nickel Iron |
| Internal volume | 26 cm3 |
| Weight | 0.8 kg |
| External interface connector | 8-way FCC68 / RJ45 Socket |
| Interface cables | Use range of active gauge cables |
| Standards | |
| Electromagnetic compatibility | EN 61326 Industrial Location, Class B emissions |
| Enclosure rating | IP40 |
| Pin allocation ** | |
| 1. Power supply positive | 5. Signal common |
| 2. Power supply common | 6. Set-point output |
| 3. Gauge output | 7. Atmosphere calibration |
| 4. Gauge identification | 8. Not connected |
* Accuracy is reduced at the limits of the measuring range.
** Not shown on diagram
Performance
Dimensions
- Type
- Pirani/Inverted Magnetron gauge
- Measuring range
- Atmosphere to 10-9 mbar
- Gauge model
- WRG-SL, Certificated
- Flange
- DN 25 ISO-KF
The Wide Range Gauge (WRG) family offers the capability of single port pressure measurement in the range atmosphere to 10-9 mbar with a linear output. Its a compact solution, halving the space and connectivity hardware requirement, which can be all important in many applications. The WRG has many novel features, including a new patented striker, pushbutton calibration and set point controls and comprehensive diagnostics. The WRG is a cost-effective vacuum management solution when used either with a Edwards controller or directly integrated into the system controls.
