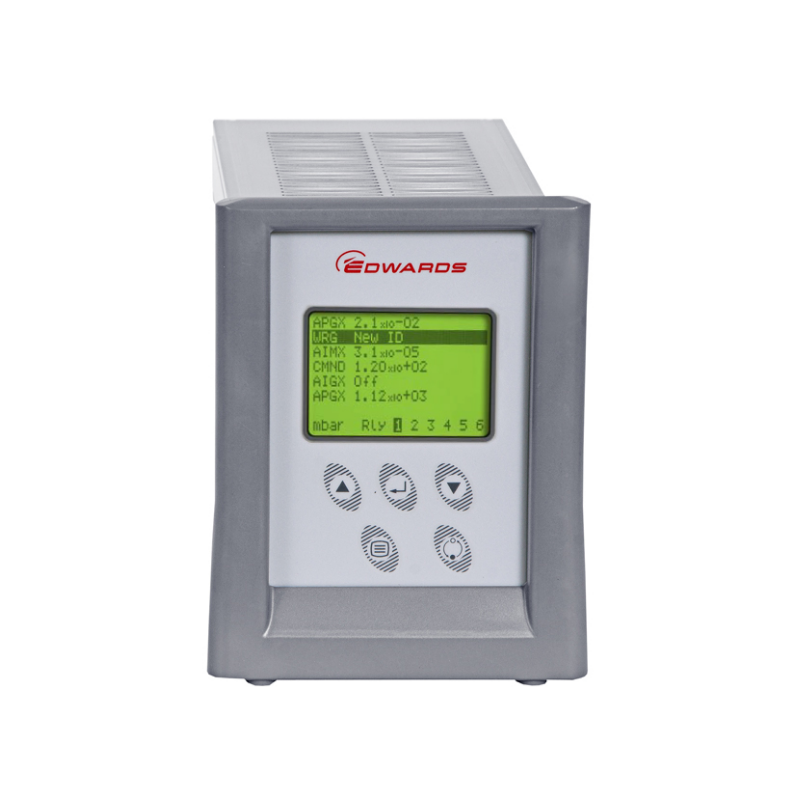

    Edwards TIC Instrument Controller 6 Head RS232/RS485

    HVC-D39701000

    The TIC InstrumentController provides compact control with a large, clear graphical display, anintuitive user interface and serial communications. The supplied Windows™-basedPC program provides full remote setup, control and data logging functions via theRS232 interface.

    TwoTIC Instrument Controllers are available; the three head and six headversions can accommodate 3 or 6 active gauges.


    Price on request

    Offerte aanvragen
    Windows™ PC Program
    The following information briefly describes the functionality of the Windows™ PC Program.

    Each TIC is supplied with a fully functional Windows™ based PC software interface, which replicates and adds to the TIC embedded control menus.

    The PC Monitor software enables TIC systems to be configured, controlled and monitored from a single PC:
    • Control gauge functions such as degas and calibrate
    • Energize or de-energize gauges
    • Access other PC Monitor control functions
    The Configuration Manager allows access in order to:
    • Link gauge channels for pressure control of high vacuum gauges
    • Create, save, and load custom configurations
    • Lock the TIC software configuration or front panel controls
    A useful data logging facility is also provided, which saves user selectable parameters to file (in a .csv format) for later analysis using suitable software.

    The relay interface panel allows the user to:
    • Link relay channels to any connected gauge head
    • Configure the relay set-point levels for automatic operation based upon sensed pressure levels
    • Manually cycle the on-board set points for manual control of connected systems
    Image.ashx?id=116460
    Type
    TIC Instrument Controller 6 Head RS232/RS485
    Channel(s)
    6
