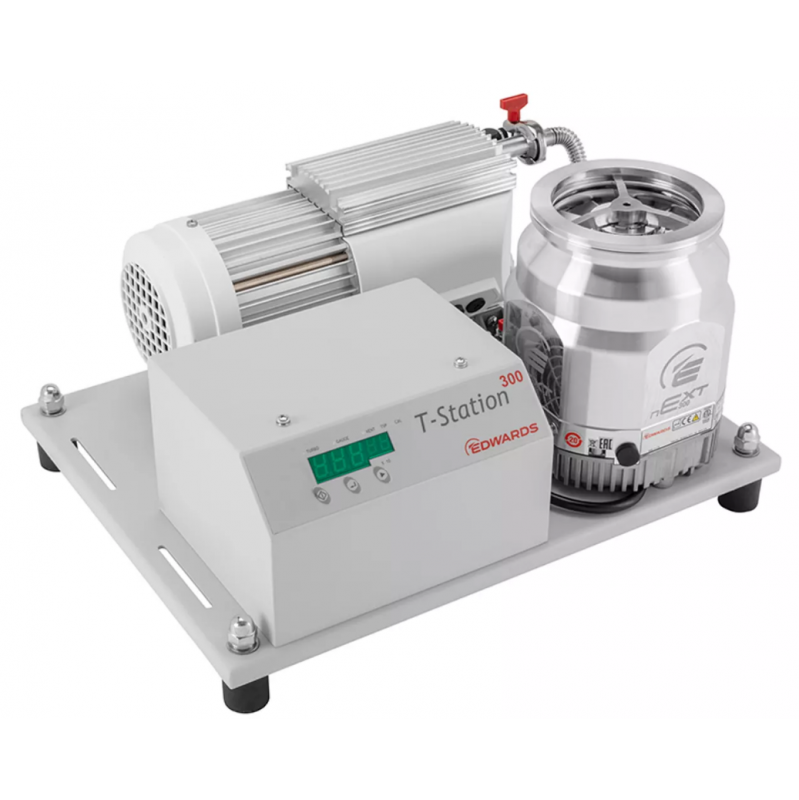

T-Station 300D Dry, DN 100 CF-F, XDD1, 200-240V
HVC-TS300D5001
T-Station 300D Dry, DN 100 CF-F, XDD1, 200-240V
Edwards T-Station 300 turbomolecular pumping station buildson the existing popular T-Station 85 platform by replacing the nEXT85H turbomolecular pump with the nEXT300 turbomolecular pump the portfolio is extended and are provides a solution for customers and applications that requires higher pumping speed up to 300 ls-1.
Technical Data
| Units | T-Station 300 | |
| Pumping speed for N2 | ||
| ISO100 | l/s | 300 |
| CF100 | l/s | 300 |
| Compression ratio for N2 | ||
| ISO100 | >1x1011 | |
| CF100 | >1x1011 | |
| Backing pump speed 50Hz | ||
| E2M1.5 | m3/h | 1.6 |
| XDD1 | m3/h | 1.2 |
| Ultimate vacuum | ||
| ISO100 | mbar | <6x10-8 |
| CF100 | mbar | <5x10-10 |
| Exhaust flange | ||
| E2M1.5 | 11 mm OD nozzle or ⅜" BSP | |
| XDD1 | Fitted silencer or ⅛" BSP | |
| Mass | ||
| TS300 ISO100 E2M1.5 | kg | 26 |
| TS300 CF100 E2M1.5 | kg | 29 |
| TS300 ISO100 XDD1 | kg | 21 |
| TS300 CF100 XDD1 | kg | 24 |
| Noise level | db(A) | <56 ± 3dB(A) Declared dual number noise emission values in |
| Leak tightness | mbar l/s | <1x106 |
| Operating temperature range | ||
| TS300 E2M1.5 | °C | +12 to +40 |
| TS300 XDD1 | °C | +5 to +35 |
