Edwards Ion gauge IG40 EX DN40CF
HVC-D03000310

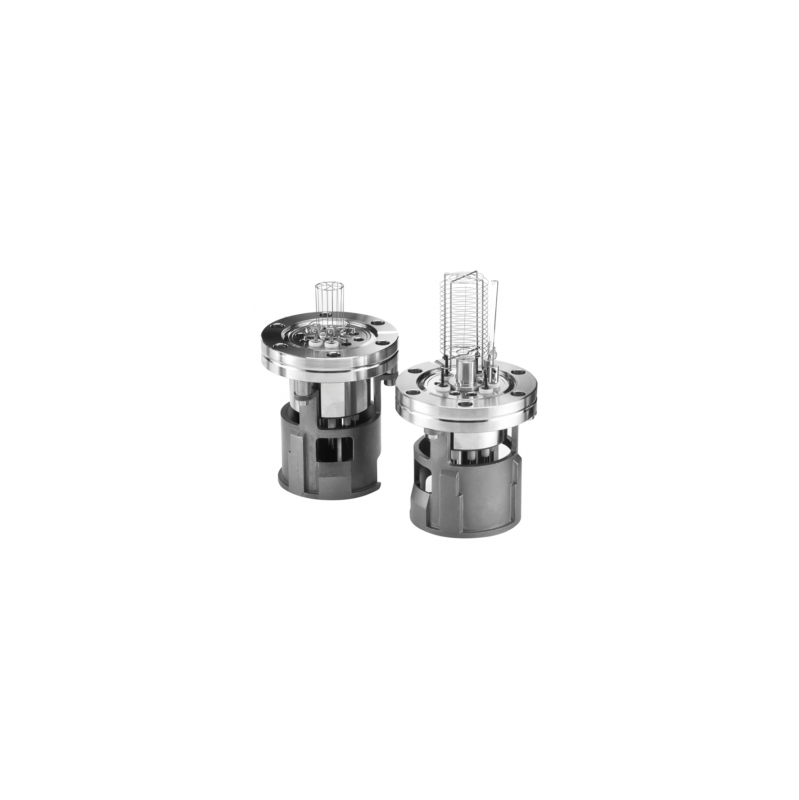

Ion gauge IG40 EX DN40CF
The Edwards range of passive gauges comprises of Pirani, Penning and both Bayard-Alpert and Extractor Ion gauge heads which together can measure from atmosphere down to 10-12 mbar. These are used in conjunction with a Passive gauge controller (PGC) to display pressure and offer an intuitive interface for the user alongside the ability to control remotely. Edwards will offer 2 controller variants; the PGC201 which covers the Pressure range of 10-9 to 1000 mbar, in conjunction with Pirani and Penning gauges, and the PGC202 which covers the wider range of and 10-12 to 1000 mbar when used with a Pirani and Ion gauge.
Technical Data
| Units | IG40 BA | IG40 EX | |
| Measurement range | mbar (Torr) | 2 x 10-11 to 10-2 (1.5 x 10-11 to 10-2) | 2x10-12 to 10-4 (1.5 x 10-12 to 10-4) |
| X-ray limit | mbar (Torr) | ≤10-11 (≤10-11) | ≤10-12 (≤10-12) |
| Ambient temperature during operation | °C | 20 to +80 | 20 to +80 |
| Maximum flange temperature with bakeable gauge cable | °C | 250 | 250 |
| Maximum bakeout temperature (with no cable connected) | °C | 400 | 400 |
| Material Cathode Anode Collector Reflector | Iridium with yttrium oxide coating Pt/Ir 90/10 and Mo/pt wrapped wire Tungsten | Iridium with yttrium oxide coating Mo and CoNiCr Tungsten NiFe | |
| Vacuum connection | DN40CF | DN40CF | |
| Operating characteristics Ion detector potential Cathode potential Anode potential Reflector potential | V | 0 80 220 - | 0 100 220 205 |
| Emission current | mA | 0.1 to 10.0 | 1.6 |
| Heating current for the hot cathode | A | 1.5 | 1.5 |
| Heating voltage for the hot cathode | V | 3.0 | 3.7 |
| Sensitivity for nitrogen | mbar-1 | 17.0 | 6.25 |
| Bake out operation, Electron bombardment | V/mA | 480/90 | 480/45 |
| Compatible controllers | PGC202 | PGC202 |
Dimensions
Bayard-Alpert sensing system
- Measurement range from 10-2 to 2 x 10-11 mbar (1.5 x 10-11 Torr)
- Protection shield welded in place
Extractor sensing system
- Measurement range from 10-4 to 2 x 10-12 mbar (1.5 x 10-12 Torr)
- Significant reduction of X-ray and ion desorption effects
- Type
- Ion Gauge
- Measuring range
- 2 · 10-12 – 10-4 hPa
- Gauge model
- IG40 EX
- Flange
- DN 40 CF
