nAIM-LI RS485 NW25
HVC-D14691030

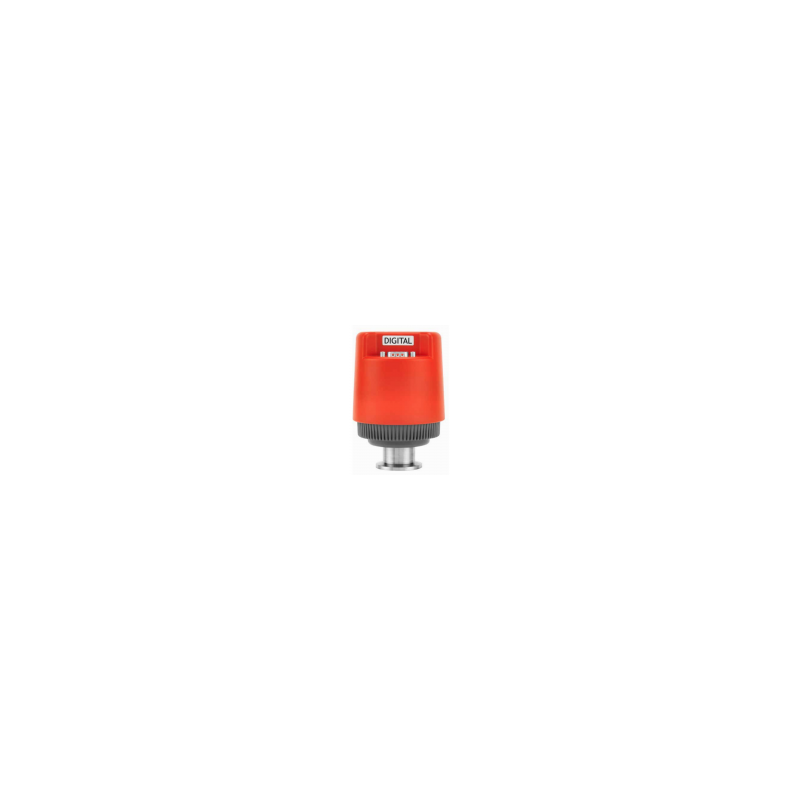

The Digital Active Inverted Magnetron Gauges (nAIM) combine the gauge-head and control electronics in one compact Active digital unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.
Drive electronics combined in the gauge head which reduces the system cost and saves valuable rack space
Low output impedance and integral Faraday shield provides high level of noise immunity
Low magnetic field version - L - for sensitive applications, e.g. mass spectrometry and electron microscopy.
Interchangeable body tube allows for rapid tube replacement without pre-calibration
CSA, CSA/US approved - meets safety requirements for electrical equipment for measurement
Technical Data
Mass |
|
NW25 version | 0.81 kg |
Internal volume | 26 cm3 |
Enclosure rating | IP40 |
Performance |
|
Measurement range | 10-2 to 10-9 mbar |
Accuracy typically | ±30% |
Maximum over-pressure | 10 bar absolute |
Operating and Storage Conditions |
|
Temperature range |
|
Operating | 5 to 60 oC |
Storage | 0 to 70 oC |
Humidity | 80% RH up to 31 oC decreasing linearly to 50% RH at 40 oC and above |
Maximum altitude | 3000 m |
Electrical Data |
|
Electrical supply voltage | 15 to 48 V DC nominal |
Power consumption | 2 W |
Set-point | open collector transistor |
Rating | 48 V DC 100 mA |
Dimensions
- Type
- Digital Active Inverted Magnetron gauge
- Measuring range
- 10-2 to 10-9 mbar
- Gauge model
- nAIM-LI RS485
- Precision: % of measurement [%]
- Typically ±30%
- Flange
- DN 25 ISO-KF
The Digital Active Inverted Magnetron Gauges (nAIM) combine the gauge-head and control electronics in one compact Active digital unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.
Drive electronics combined in the gauge head which reduces the system cost and saves valuable rack space
Low output impedance and integral Faraday shield provides high level of noise immunity
Low magnetic field version - L - for sensitive applications, e.g. mass spectrometry and electron microscopy.
Interchangeable body tube allows for rapid tube replacement without pre-calibration
CSA, CSA/US approved - meets safety requirements for electrical equipment for measurement
