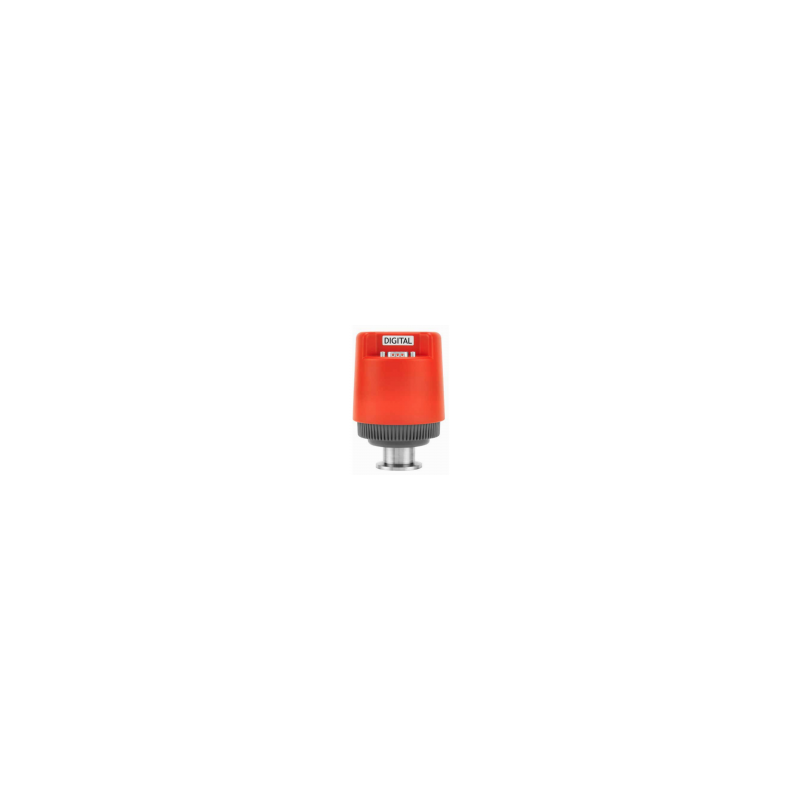

    nAIM-L RS485 NW25

    HVC-D14691010

    The Digital Active Inverted Magnetron Gauges (nAIM) combine the gauge-head and control electronics in one compact Active digital unit. These gauges have proved to be rugged and reliable in a wide range of applications ranging from scientific instruments to industrial processes.

    Drive electronics combined in the gauge head which reduces the system cost and saves valuable rack space

    Low output impedance and integral Faraday shield provides high level of noise immunity

    Low magnetic field version - L - for sensitive applications, e.g. mass spectrometry and electron microscopy.

    Interchangeable body tube allows for rapid tube replacement without pre-calibration

    CSA, CSA/US approved - meets safety requirements for electrical equipment for measurement


    Price on request

    Offerte aanvragen

    Technical Data

    Mass



    NW25 version

    0.81 kg

    Internal volume

    26 cm3

    Enclosure rating

    IP40

    Performance



    Measurement range

    10-2 to 10-9 mbar

    Accuracy typically

    ±30%

    Maximum over-pressure

    10 bar absolute

    Operating and Storage Conditions



    Temperature range



         Operating

    5 to 60 oC

         Storage

    0 to 70 oC

    Humidity

    80% RH up to 31 oC decreasing linearly to 50% RH at 40 oC and above

    Maximum altitude

    3000 m

    Electrical Data



    Electrical supply voltage

    15 to 48 V DC nominal

    Power consumption

    2 W

    Set-point

    open collector transistor

         Rating

    48 V DC 100 mA



    Dimensions

    Image.ashx?id=357616
    Type
    Digital Active Inverted Magnetron gauge
    Measuring range
    10-2 to 10-9 mbar
    Gauge model
    nAIM-L RS485
    Precision: % of measurement [%]
    Typically ±30%
    Flange
    DN 25 ISO-KF
