CG16K, 0-25 mbar
HVC-D35613000

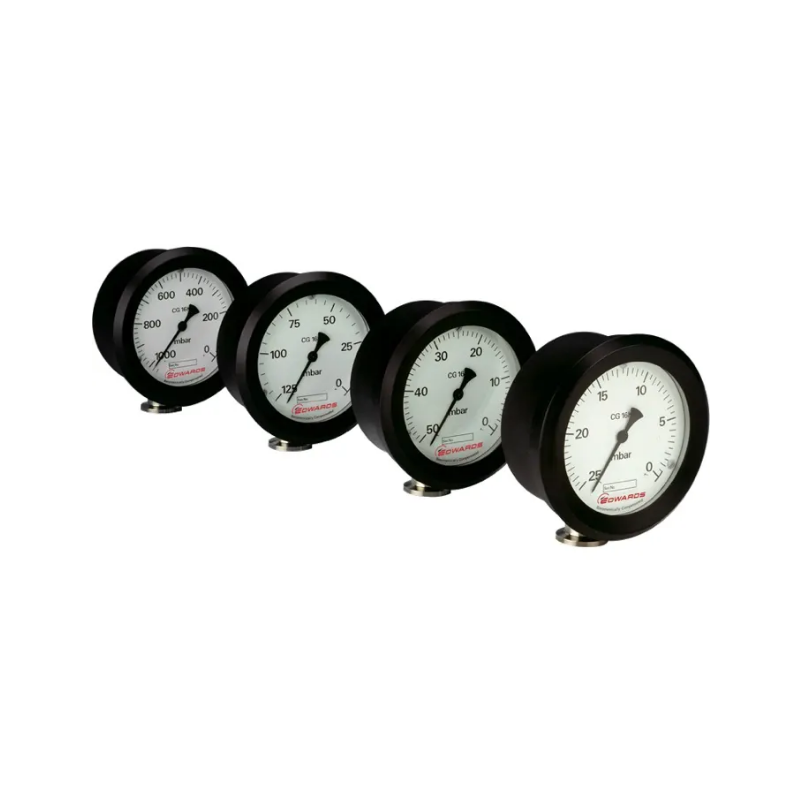

CG16K, 0-25 mbar
CG16K capsule dial gauges are barometrically compensated with NW flange fittings. Designed to cover the range of 0 to 1040 mbar, these robust gauges provide accurate, repeatable performance even at low pressures making them equally suited for non-corrosive process plant or for laboratory applications. Fitting is simple: the gauges can be mounted direct or panel mounted using the kit supplied.
For optimum results, capsule dial gauges should be located close to the pressure to be measured. Long pipe lengths may lead to pressure drops and inaccuracy.
Technical Data
| Range | 0-1040 mbar, 0-760 Torr |
| 0-125 mbar, 0.100 Torr | |
| 0-50 mbar, 0-40 Torr | |
| 0-25 mbar, 0-20 Torr | |
| Accuracy | ±2% of full scale deflection |
| Maximum applied pressure | |
| 25 mbar version | 1 bar absolute, 0 bar gauge |
| Other versions | 2 bar absolute, 1 bar gauge |
| Weight | 1 kg |
| Vacuum connection | NW16 Flange |
| Accessories supplied | Clamp and studs for panel mounting |
- Type
- barometrically compensated dial gauges
- Measuring range
- 0 -25 mbar
- Gauge model
- CG16K
- Precision (Full Scale) [%]
- 2
- Flange
- DN 16 ISO-KF
