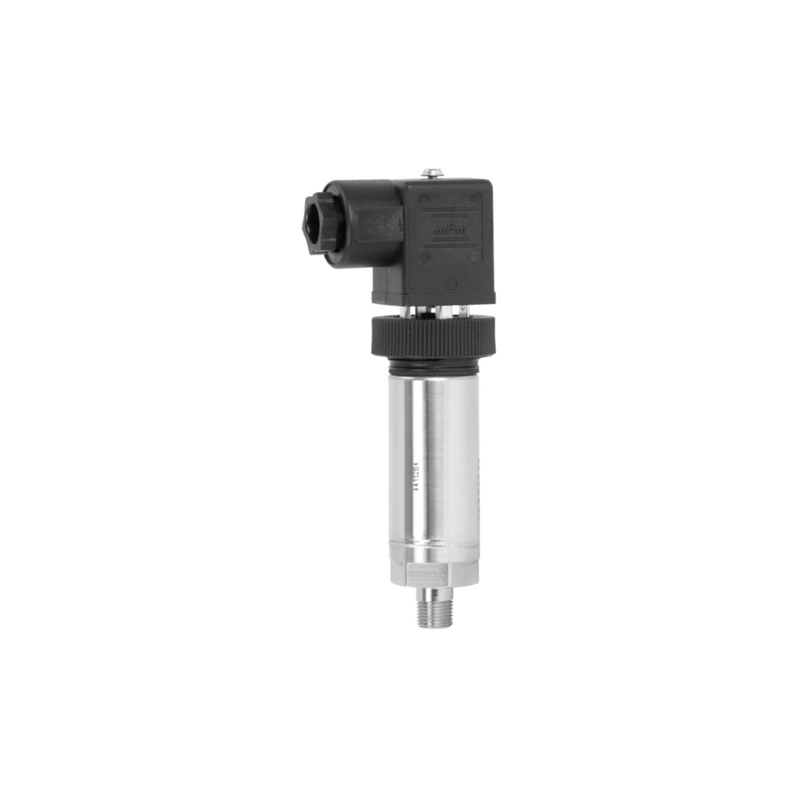

ASG2 1/8 Inch NPT, 2000 mbar
HVC-D35737000
ASG2 1/8 Inch NPT, 2000 mbar
The Edwards Active Strain Gauge (ASG2) is a rugged, corrosion resistant diaphragm gauge which provides accurate, gas independent measurement from 2000 mbar to 1 mbar or 1000 mbar to 1 mbar. It can be used as a stand-alone transducer allowing OEMs and system builders to develop low cost, flexible solutions to their vacuum instrumentation needs. Alternatively, it can be connected to the TIC Instrument Controller where it can be combined with many other sensor types to provide a complete vacuum instrument solution.
Note: ASG adaptor cable supplied separately. This cable must be used with TIC, AGC, ADC & ADD.
Technical Data
| Full scale pressure range | ASG2-1000, 1000 to 1 mbar ASG2-2000, 2000 to 1 mbar |
| Accuracy | ±0.2% full scale |
| Stability | ±0.1% full scale |
| Temperature coefficient | ±0.03% full scale per oC |
| Power supply | 12 to 32 V d.c. |
| Maximum power | 0.1 W |
| Output signal | 0 to 10 V d.c. linear |
| Output impedance | 51 (Ohms) |
| Minimum load | >10 (Ohms) |
| Adjustments | Set full scale and set zero |
| Temperature range | |
| Compensated | -10 to +50 oC |
| Operating / Storage | -40 to +80 oC |
| Materials exposed to vacuum | Stainless steel 316L, Hastelloy C276 |
| Internal volume | NW16 2.78 cm3 1/8" NTP 2.74 cm3 |
| Weight | NW16 150 g 1/8" NTP 130 g |
| Electrical connector | 4 pin Din 43650 Form A |
| Vacuum fitting | NW16 or 1/8" NTP |
| Enclosure rating | IP65 |
Performance
Dimensions
- Type
- Diaphragm gauge
- Measuring range
- 1 - 2000 mbar
- Gauge model
- ASG2
- Precision: % of measurement [%]
- 0,2
- Flange
- Tube 1/8 Inch NPT
