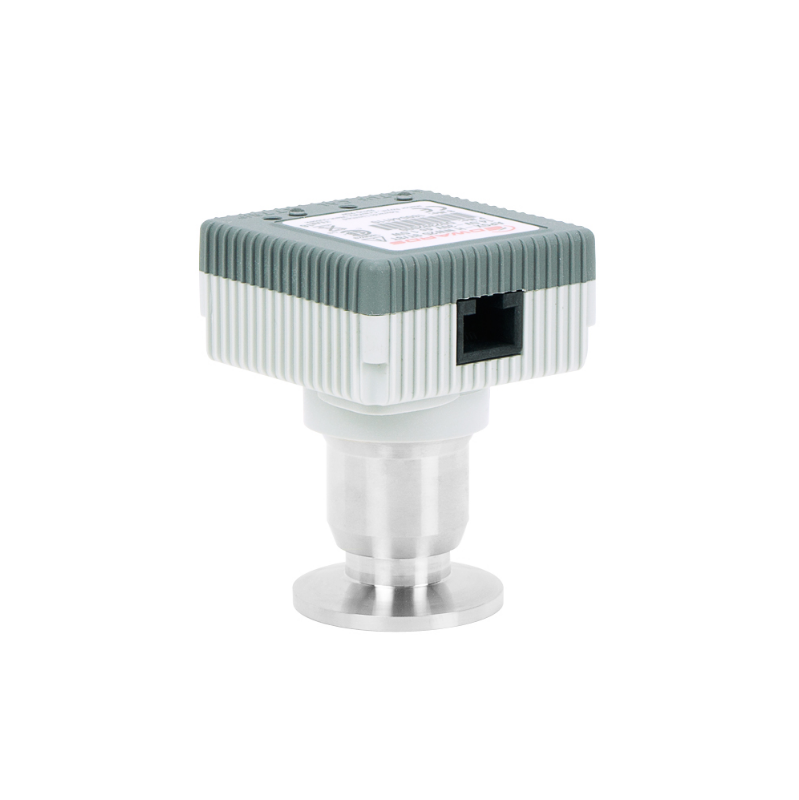

APGX-H-NW25 ST/ST, Certificated
HVC-D0239200C
Edwards Linear Convection Vacuum Gauge has a wide measuring range from 1333 to 3 x 10-4 mbar (1000 to 2.3 x 10-4 Torr). The use of convection technology ensures accuracy and sensitivity are maintained to the top of the range.
The gauge is compact and may be mounted in any orientation, simplifying installation where space is limited. The gauge incorporates a setpoint and two LEDs, which indicate setpoint and gauge status.
Technical Data
| Pressure range | 1333 to 3 x 10-4 mbar(1000 to 2.3 x 10-4 Torr) |
| Power supply | 14.5 to 30 V DC |
| Power consumption | 1.5 W maximum |
| Accuracy | ±15% of reading ±3 x 10-4 mbar |
| Repeatability | ±5% of reading |
| Response time | < 100 ms |
| Maximum overpressure | 10 bar absolute (145 psia) |
| Adjustments | Set vacuum and set atmosphere. To allow for variations in barometric pressure, atmosphere may be set in the range 700 to 1100 mbar (525 to 825 Torr). |
| Setpoints† (open collector transistor) | Range of setpoint 1.8 to 9.3 V |
| Rating 30 V DC 100 mA | |
| Fixed hysteresis (1/2 decade) 500 mV |
Performance
Dimensions
| A | |
| NW16 Al | 75mm / 2.95inch |
| NW16 St St | 75mm / 2.95inch |
| NW25 St St | 75mm / 2.95inch |
| 1/8 inch NPT St St | 87mm / 3.42inch |
- Type
- Linear Convection Gauge
- Measuring range
- 1333 to 3 x 10-4 mbar
- Gauge model
- APGX-H-NW25 ST/ST, Certificated
- Precision: % of measurement [%]
- ±15% of reading ±3 x 10-4 mbar
- Flange
- DN 25 ISO-KF
