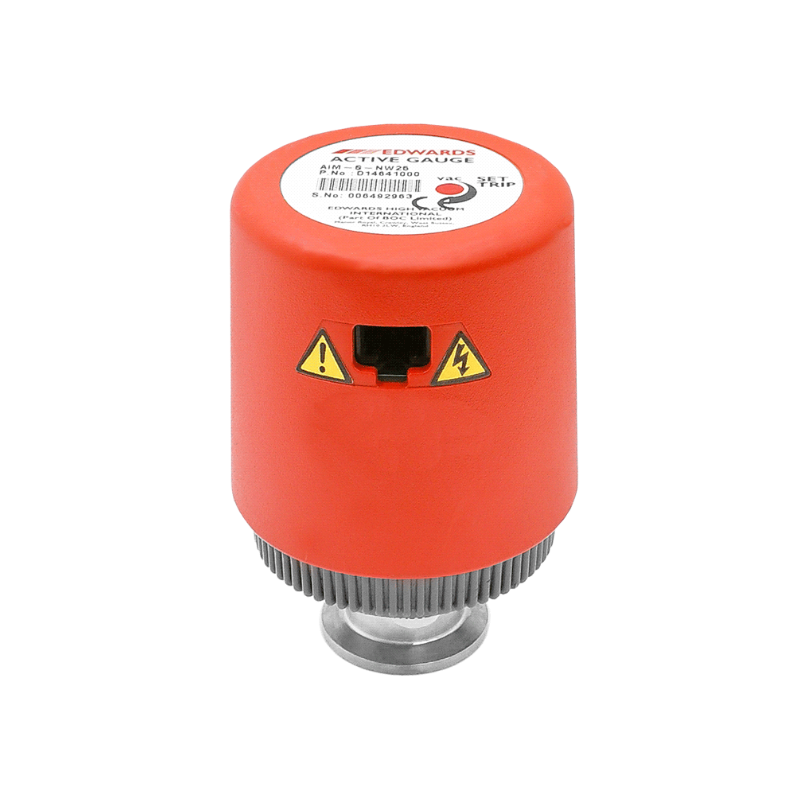

AIM-X-DN40CF, Certificated
HVC-D1466200C
Edwards Active Inverted Magnetron (AIM) Gauges provide accurate measurement over the vacuum range of 1 x 10-2 to 1 x 10-9 mbar. These gauges have proved to be rugged and reliable in a wide range of applications, ranging from scientific instruments to industrial processes.
The AIM-X Gauge is an inverted magnetron gauge head and gauge controller combined into a single compact unit, and features a linear output for easy integration with a computer or PLC.
The XL variants have a very low external magnetic field, these are ideally suitable for use with sensitive analytical instruments or in applications where the gauge needs to be mounted in close proximity to a turbomolecular pump.
| Pressure Range | |
| AIM-S | 10-2 to 10-8 mbar |
| AIM-X | 10-2 to 10-9 mbar |
| Accuracy* | Typically ±30% |
| Maximum overpressure | 10 bar absolute (145 psi) |
| Power supply | +13.5 to +36 V DC (max 1 V ripple) |
| Power consumption | 2 W Maximum |
| Output signal | 2 to 10 V DC |
| Set point | Open collector transistor |
| Maximum voltage | 40V DC |
| Current | 100 mA max |
| Temperature range | |
| Operating | +5 to +60°C |
| Storage | +0 to +70°C |
| Materials exposed to vacuum | |
| NW25 versions | Stainless steel 304 & 316 & 347, fluoroelastomer, glass |
| DN40CF versions | Stainless steel 304 & 316 & 347, copper, ceramic |
| Internal volume | 26 cm3 |
| Weight | 0.81 kg |
| External interface connector | 8-way FCC68/RJ45 socket |
| Vacuum fitting | NW25 |
| Standards | |
| Electronic design | EN 61010-1 |
| Electromagnetic compatibility | EN 61326 (Class B Emissions) |
| Flame retardant casing | UL94 |
| Enclosure rating | IP40 |
*Accuracy is reduced at the limits of the measuring range
Performance
Dimensions
- Type
- Active Inverted Magnetron gauge
- Measuring range
- 10-2 to 10-9 mbar
- Gauge model
- AIM-X, Certificated
- Precision: % of measurement [%]
- Typically ±30%
- Flange
- DN 40 CF
