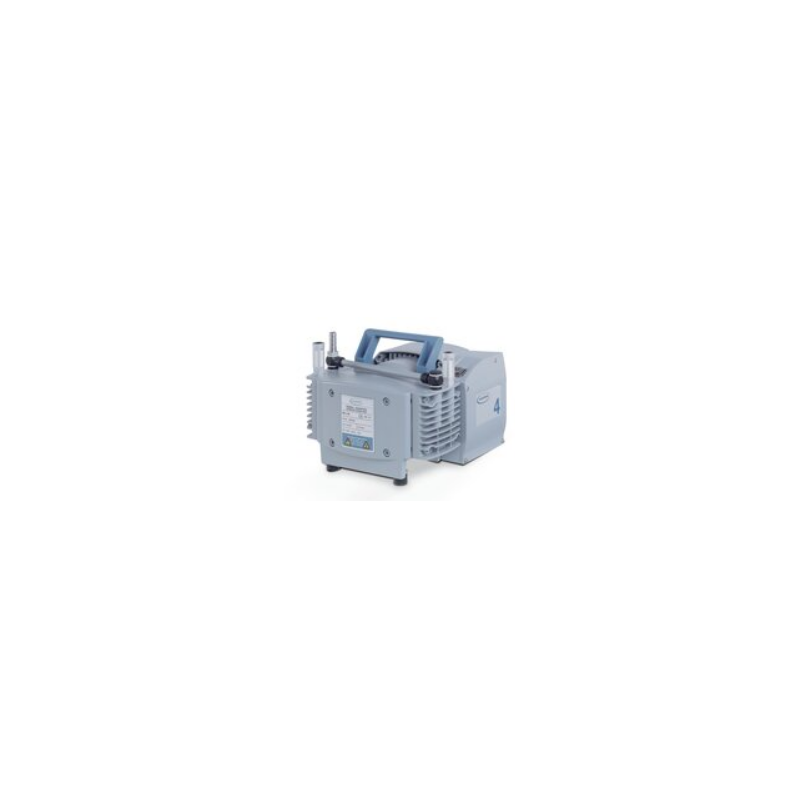

Vacuubrand ME 4 NT, diaphragm pump
HVC-20731000
Diaphragm pumps are an excellent solution for continuous, oil-free evacuation and pumping of gases. All parts in contact with pumped media are made of aluminum and selected plastics, allowing a wide range of applications for non-corrosive gases. The one-stage construction provides the advantageous combination of high pumping speed and an ultimate vacuum down to 70 mbar. The highly flexible fabric-reinforced double diaphragm made of FKM is ideal for extended operating life. The NT-series features further improved performance data.
- Pump Model
- ME 4 NT
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 4.0/4.4 m³/h
- Final Pressure
- 70 mbar
- Inlet connection
- Hose nozzle DN 8-10 mm
- Outlet connection
- 2 x silencer / G1/4"
