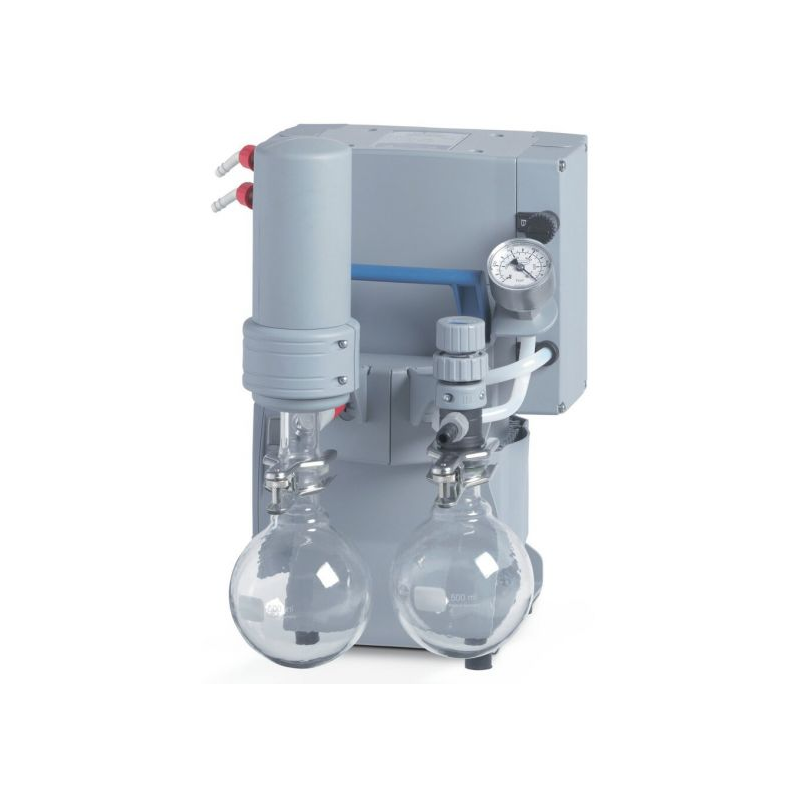

Vacuubrand PC 201 NT, diaphragm pump
HVC-20737000
This chemistry pumping unit has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories. Typical applications are rotary evaporators, vacuum concentrators and vacuum drying ovens with high boiling solvents. The manual flow control valve regulates the effective pumping speed at the vacuum connection; the vacuum manometer offers an analog vacuum display. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets. The exhaust waste vapor condenser enables near-100-percent solvent recovery.
- Pump Model
- PC 201 NT
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 3.4/3.8 m³/h
- Final Pressure
- 1.5 mbar
- Inlet connection
- Hose nozzle DN 8-10 mm
- Outlet connection
- Hose nozzle DN 8-10 mm
