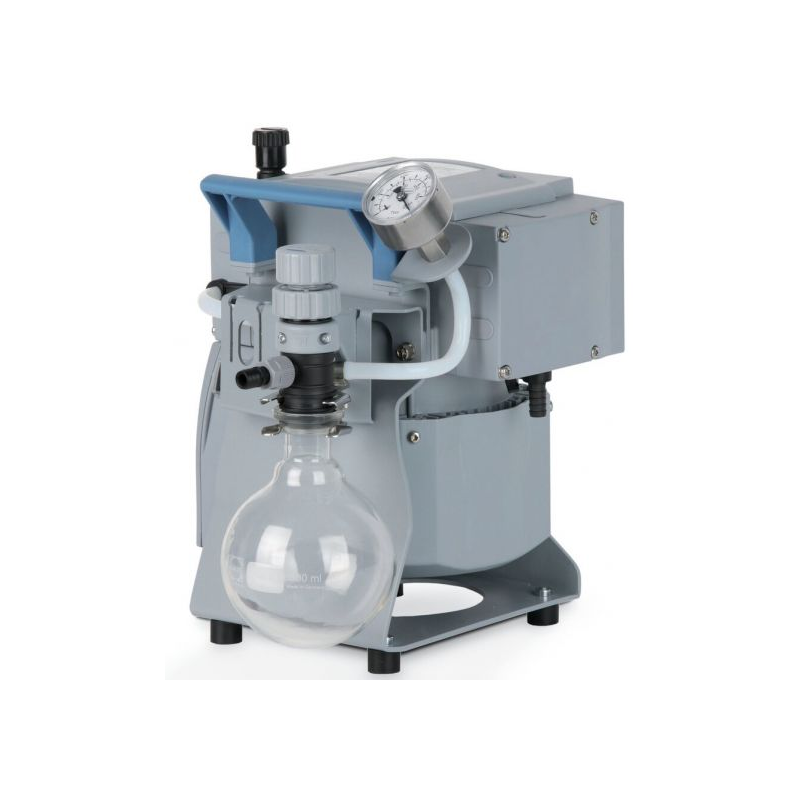

Vacuubrand MZ 2C NT +AK+M+D, diaphragm pump
HVC-20732700
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. This system is well proven for filtration. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets.
- Pump Model
- MZ 2C NT +AK+M+D
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 2.0/2.3 m³/h
- Final Pressure
- 7 mbar
- Inlet connection
- Hose nozzle DN 8-10 mm
- Outlet connection
- Hose nozzle DN 8-10 mm
This chemistry vacuum system has a wide range of applications like evacuation, evaporation and pumping of gases and vapors in chemical, biological and pharmaceutical laboratories where there are no requirements for condensation of solvent vapors at the outlet. The manual flow control valve regulates the effective pumping speed at the vacuum connection, the vacuum manometer offers an analog vacuum display. This system is well proven for filtration. The separator at the inlet (AK), made of glass with a protective coating, retains particles and liquid droplets.
