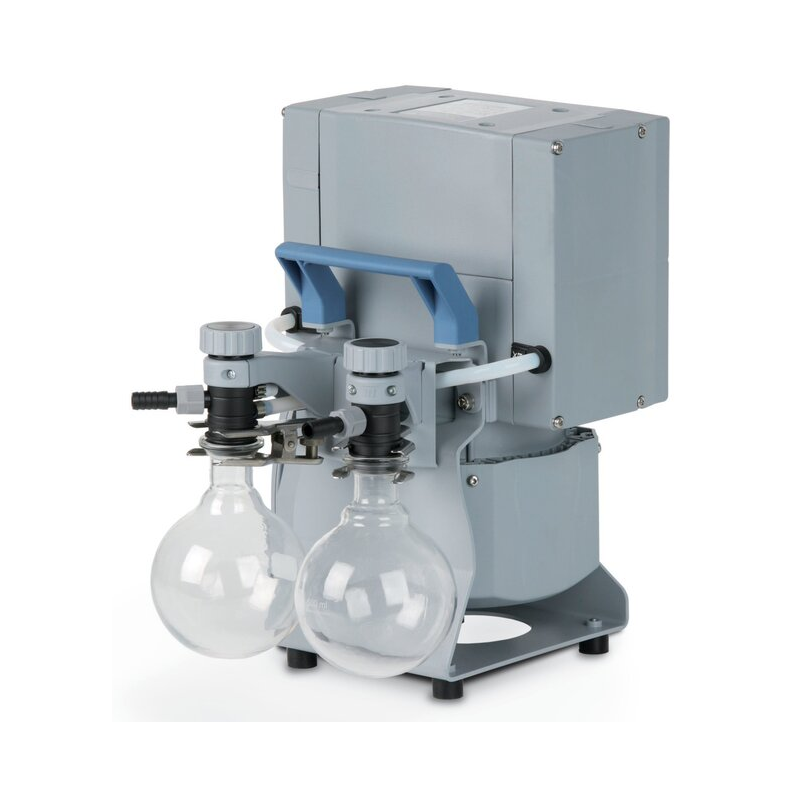

Vacuubrand ME 8C NT +2AK, diaphragm pump
HVC-20734405
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
- Pump Model
- ME 8C NT +2AK
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 7.1/7.8 m³/h
- Final Pressure
- 70 mbar
- Inlet connection
- Hose nozzle DN 8-10 mm
- Outlet connection
- Hose nozzle DN 8-10 mm
Chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors. The one-stage construction provides the advantageous combination of high pumping speed and low ultimate vacuum down to 70 mbar. All major parts in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms for increased reliability and extended operating life. These large pumps have an exceptionally high pumping speed. The NT-series features further improved performance data and superior vapor tolerance.
