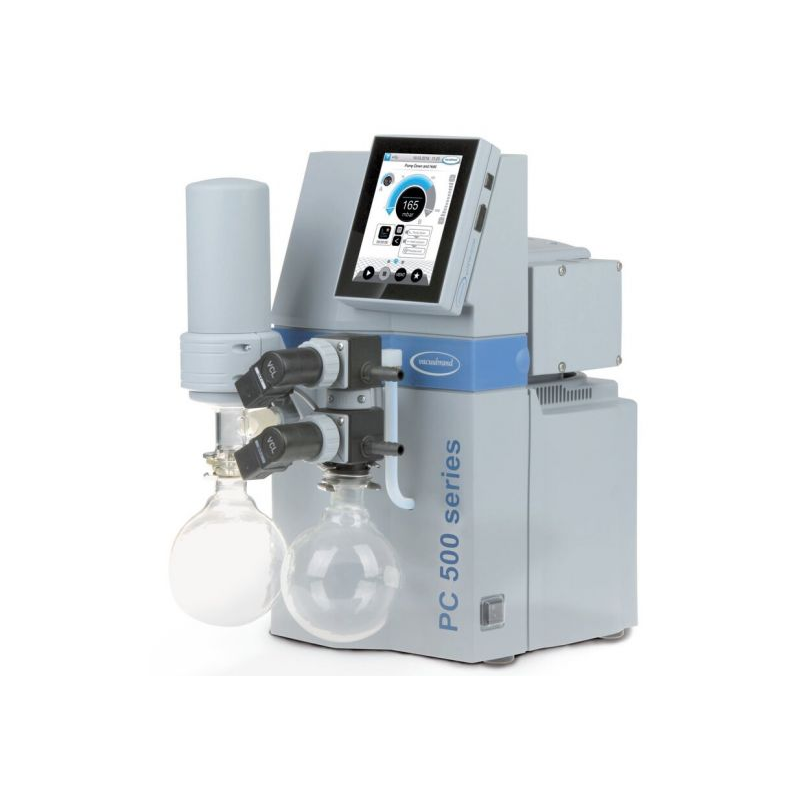

Vacuubrand PC 520 select, diaphragm pump
HVC-20733350
This chemistry vacuum pumping unit is an economical, compact solution for simultaneous operation of two electronically controlled vacuum applications with one single pump. Based on our popular MZ 2C NT two-stage chemistry diaphragm pump, the PC 520 select is frequently used for medium-sized vacuum applications involving common solvents. Both vacuum ports have independent solenoid valves for electronic vacuum control, and check valves to protect against cross contamination and interference. With an intuitive, application-based interface, the VACUU·SELECT controller offers predefined vacuum processes for all common laboratory applications. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing.
- Pump Model
- PC 520 select
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 2.0/2.4 m³/h
- Final Pressure
- 7 mbar
- Inlet connection
- 2 x hose nozzle DN 8-10 mm
- Outlet connection
- Hose nozzle DN 8-10 mm
