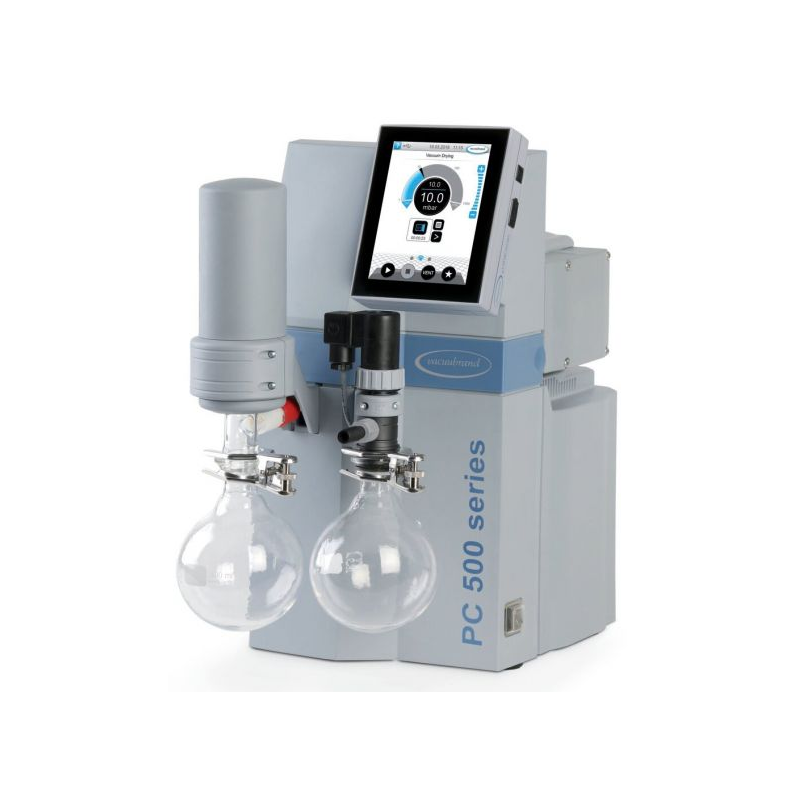

    Vacuubrand PC 511 select, diaphragm pump

    HVC-20733250

    The PC 511 select is an economical, compact solution for simultaneously running two independent vacuum applications with a single pump. Our popular MZ 2C NT two stage chemistry diaphragm pump is the heart of these pumping units, frequently used for medium-sized vacuum applications involving common solvents. With an intuitive, application-based interface, the VACUU·SELECT controller offers predefined vacuum processes for all common laboratory applications. Use manual set-point-control for simple processes, run distillations, or create your own application with simple drag-and-drop editing. For solvent evaporation, the electronically controlled port detects the boiling pressure and switches to two point control to hold pressure steady when a boiling point is detected.


    Price on request

    Offerte aanvragen
    Pump Model
    PC 511 select
    Voltage & Phases
    220-230 VAC 50-60 HZ 1-Ø
    Pumping Speed
    2.0/2.4 m³/h
    Final Pressure
    7 mbar
    Inlet connection
    2 x hose nozzle DN 8-10 mm
    Outlet connection
    Hose nozzle DN 8-10 mm
