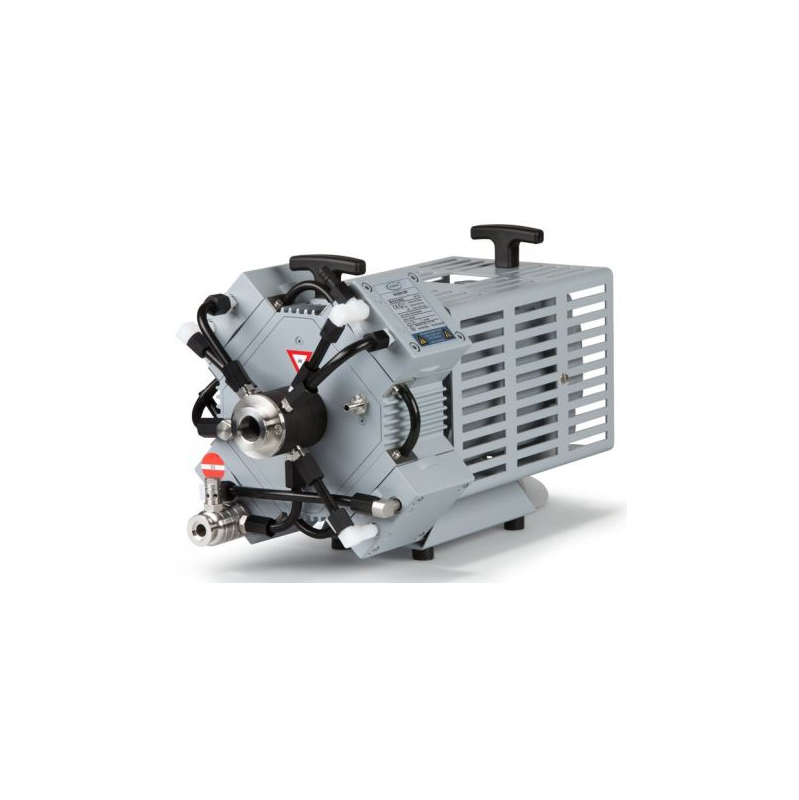

Vacuubrand MD 4C EX VARIO, diaphragm pump
HVC-20696936
With the new ATEX VARIO® chemistry diaphragm pumps and vacuum systems, the vacuum can be precisely controlled by the motor speed. The VARIO® pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT with ATEX vacuum sensor and Connection Box 100 enable fully automatic evaporations without the need for parameter settings or user programming. With the adaptive control it finds the boiling pressure independently and adjusts the vacuum continuously and optimally according to the vapor pressure. The vacuum controller and the Connection Box 100 are installed in a non-hazardous area.
- Pump Model
- MD 4C EX VARIO
- Voltage & Phases
- 220-230 VAC 50-60 HZ 1-Ø
- Pumping Speed
- 3.7 m³/h
- Final Pressure
- 3 mbar
- Inlet connection
- small flange KF DN 25
- Outlet connection
- small flange KF DN 16
With the new ATEX VARIO® chemistry diaphragm pumps and vacuum systems, the vacuum can be precisely controlled by the motor speed. The VARIO® pump is driven by an additional control signal line. The optional vacuum controller VACUU·SELECT with ATEX vacuum sensor and Connection Box 100 enable fully automatic evaporations without the need for parameter settings or user programming. With the adaptive control it finds the boiling pressure independently and adjusts the vacuum continuously and optimally according to the vapor pressure. The vacuum controller and the Connection Box 100 are installed in a non-hazardous area.
