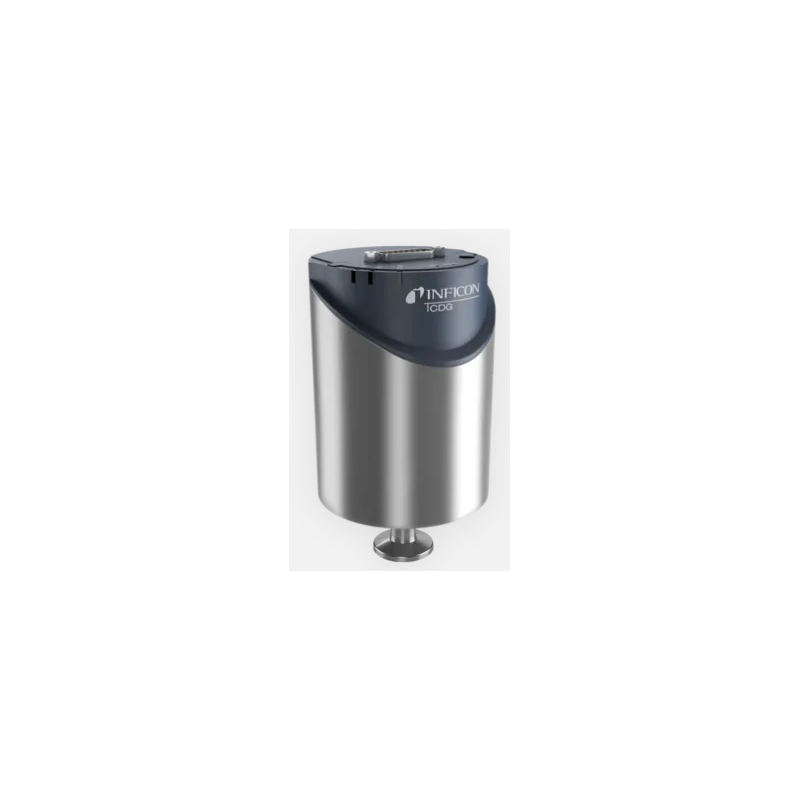

    Inficon SKY® CDG160D, 1100 mbar, 8 VCR female long

    HVC-3CE1-G6H-2300

    SKY® CDG160D, 1100 mbar, 8 VCR female long

    • Lower CoO (cost of ownership), 50% faster warm up, energy efficient low power consumption
    • Easy integration, wide variety of full scales, flanges and interfaces, standard with two set points
    • Easy one push button or remote signal zero command, zero offset adjustable
    • Diagnostic port for quick service and maintenance
    • Two year warranty, longer life time with heating concept and gauge protection
    • No long term recalibration due to excellent signal stability and repeatability, even in harsh plasma applications
    • Compliance & standards: CE, EN, UL, SEMI, RoHS

    Price on request

    Offerte aanvragen
    Type
    Capacitance gauge
    Measuring range
    1 · 10-1 – 1.1 · 10*3 mbar
    Gauge model
    CDG160D
    Precision: % of measurement [%]
    0,15
    Full scale (hPa)
    1000
    Flange
    8 VCR female long
