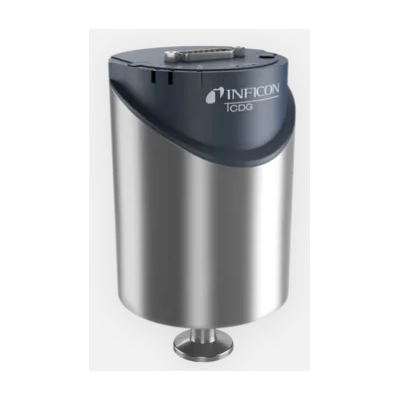

Inficon SKY® CDG045D, 100 mbar, 4 VCR female
HVC-3CC1-C6D-2300
SKY® CDG045D, 100 mbar, 4 VCR female
- Lower CoO (cost of ownership), 50% faster warm up, energy efficient low power consumption
- Easy integration, wide variety of full scales, flanges and interfaces, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Two year warranty, longer life time with advanced heating concept and gauge protection
- No long term recalibration due to excellent signal stability and repeatability, even in harsh plasma applications
- Compliance & standards: CE, EN, UL, SEMI, RoHS
- Type
- Capacitance gauge
- Measuring range
- 1 · 10-² – 1,1 · 10² mbar
- Gauge model
- CDG045D
- Precision: % of measurement [%]
- 0,15
- Full scale (hPa)
- 100
- Flange
- 4 VCR female
