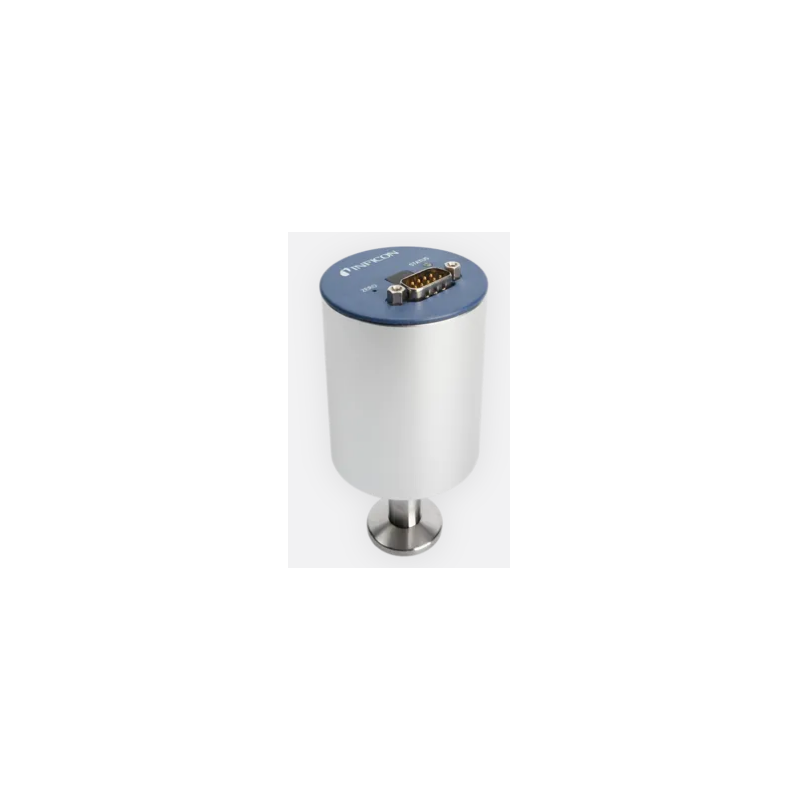

Inficon SKY® CDG025D-X3, 4-20mA, 1100 mbar, 4 VCR female
HVC-3CB1-G6D-01E0
SKY® CDG025D-X3, 4-20mA, 1100 mbar, 4 VCR female
- Full scale ranges from 100 mTorr … 1000 Torr
- Fast stability after power on
- Fast recovery from atmospheric pressure
- Corrosion resistant ceramic sensor
- Excellent long term signal stability
- Temperature compensated
- Sensor double protected from contamination
- One pushbutton zero function
- Interface with 2-wire current loop
- Long cable distance (<300m)
- Low energy gauge
- Remote zero included
- Clean room compliant
- Status LED
- Type
- Capacitance gauge
- Measuring range
- 1 · 10-1 – 1.1 · 10*3 mbar
- Gauge model
- CDG025D-x3
- Precision: % of measurement [%]
- 0,15
- Full scale (hPa)
- 1000
- Flange
- 4 VCR female
