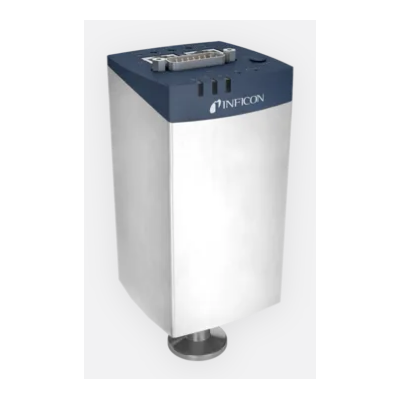

Inficon Edge® CDG025D2, 10 mbar, 4 VCR female
HVC-3CB5-96D-23G0
Inficon Edge® CDG025D2, 10 mbar, 4 VCR female
- Easy integration, EtherCAT, wide variety of full scales and flanges, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Corrosion resistant ceramic sensor
- Excellent long term signal stability
- Temperature compensated
- Sensor protected from contamination
- Compliance & standards: CE, EN, UL, SEMI, RoHS
- Type
- Capacitance gauge
- Measuring range
- 1 · 10-³ – 1.1 · 10 mbar
- Gauge model
- CDG025D2
- Precision: % of measurement [%]
- 0,15
- Full scale (hPa)
- 10
- Flange
- 4 VCR female
Inficon Edge® CDG025D2, 10 mbar, 4 VCR female
- Easy integration, EtherCAT, wide variety of full scales and flanges, standard with two set points
- Easy one push button or remote signal zero command, zero offset adjustable
- Diagnostic port for quick service and maintenance
- Corrosion resistant ceramic sensor
- Excellent long term signal stability
- Temperature compensated
- Sensor protected from contamination
- Compliance & standards: CE, EN, UL, SEMI, RoHS
