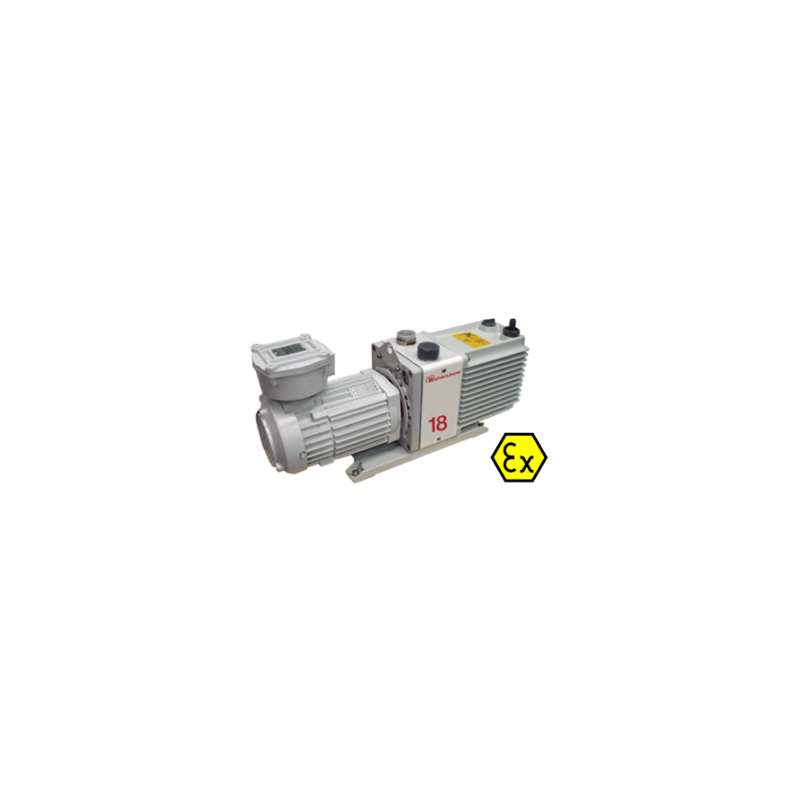

Edwards E1M18 ATEX
HVC-A34318992
ATEX EM18 pumps have an external ATEX classification of Ex II 2G IIC T4 and are suitable for use in potentially explosive atmospheres. They share the same internal ATEX classification as our standard EM18 pumps, namely Ex II 3G Ex h IIB T4 Gc. ATEX pumps with flameproof motors require the user to provide 2 off hazardous area cable glands and cables. In addition, connection of the thermistors to an appropriate safety circuit must be made to switch off the pump if overheating occurs. The pumps are supplied with the gas ballast port plugged. When pumping flammable gasses or vapours you must fit and inert gas purge to this port to dilute such gasses or vapours below the lower explosive limit.
Supplied with 2 x 1 litre Ultragrade 19 oil, NW25 O-ring and centering ring.
- Pump Model
- E1M18 ATEX
- Voltage & Phases
- 400 VAC, 50HZ 3-Ø
- Pumping Speed
- 17 m³/h
- Final Pressure
- 3 · 10-2 hPa
ATEX EM18 pumps have an external ATEX classification of Ex II 2G IIC T4 and are suitable for use in potentially explosive atmospheres. They share the same internal ATEX classification as our standard EM18 pumps, namely Ex II 3G Ex h IIB T4 Gc. ATEX pumps with flameproof motors require the user to provide 2 off hazardous area cable glands and cables. In addition, connection of the thermistors to an appropriate safety circuit must be made to switch off the pump if overheating occurs. The pumps are supplied with the gas ballast port plugged. When pumping flammable gasses or vapours you must fit and inert gas purge to this port to dilute such gasses or vapours below the lower explosive limit.
Supplied with 2 x 1 litre Ultragrade 19 oil, NW25 O-ring and centering ring.
