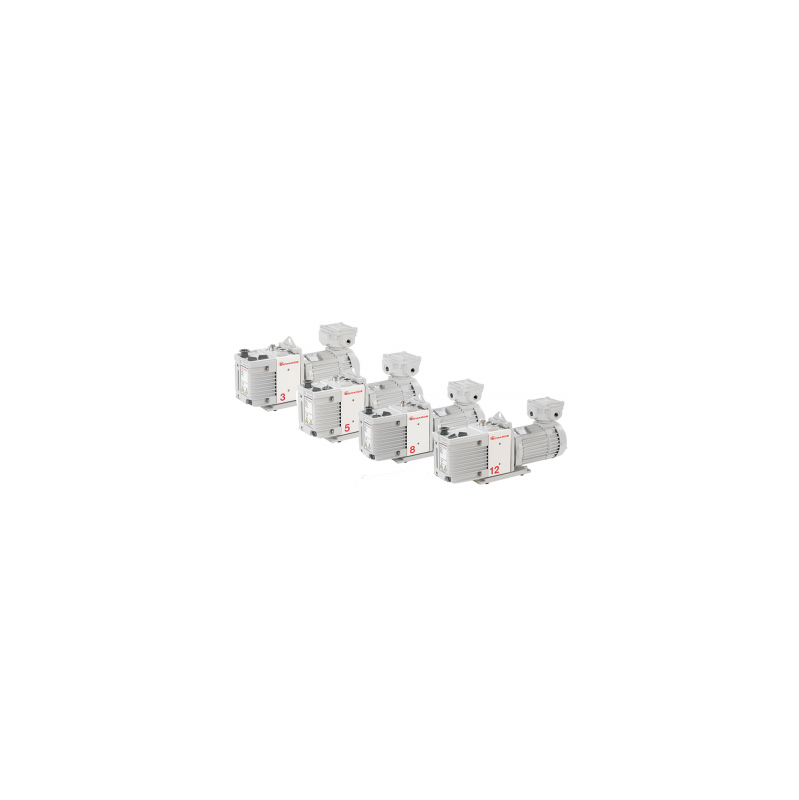

Edwards RV8 ATEX 230V, 1-ph, 50Hz
HVC-A65418989
ATEX RV pumps have an external ATEX classification of Ex II 2G IIC T4 and are suitable for use in potentially explosive atmospheres. They share the same internal ATEX classification as our standard RV pumps, namely Ex II 3G Ex h IIB T4 Gc. ATEX pumps with flameproof motors require the user to provide 2 off hazardous area cable glands and cables. In addition, connection of the thermistors to an appropriate safety circuit must be made to switch off the pump if overheating occurs. The pumps are supplied with the Gas Ballast port plugged. When pumping flammable gasses or vapours you must fit an inert gas purge to this port to dilute such gases or vapours below the lower explosive limit.
Supplied with 1 litre of Ultragrade 19 oil, inlet filter and O-ring.
- Pump Model
- RV8 ATEX
- Voltage & Phases
- 240 VAC, 50HZ 1-Ø
- Pumping Speed
- 8.5 m³/h
- Final Pressure
- 2 · 10-3 hPa
ATEX RV pumps have an external ATEX classification of Ex II 2G IIC T4 and are suitable for use in potentially explosive atmospheres. They share the same internal ATEX classification as our standard RV pumps, namely Ex II 3G Ex h IIB T4 Gc. ATEX pumps with flameproof motors require the user to provide 2 off hazardous area cable glands and cables. In addition, connection of the thermistors to an appropriate safety circuit must be made to switch off the pump if overheating occurs. The pumps are supplied with the Gas Ballast port plugged. When pumping flammable gasses or vapours you must fit an inert gas purge to this port to dilute such gases or vapours below the lower explosive limit.
Supplied with 1 litre of Ultragrade 19 oil, inlet filter and O-ring.
