Common specifications:
- Tightness by elastomer seals: two Viton® shaft seals
- Direct push/pull and rotary actuation
- With locking ring and optional anti-rotation device
- Leak rate (static) : 1x10-9 mbar.L.s-1
- ISO-KF mountuing flanges
Operating conditions:
- Pressure range (abs.): from 1x10-8 mbar up to 1 bar
- Operating temperature: 50°C
- Bakeout tempeature : 110°C
- Materials exposed to process media: inox 304, Aluminium 6063
| Code | Type | Flange | Price ex. | Qty | More info | |
|---|---|---|---|---|---|---|

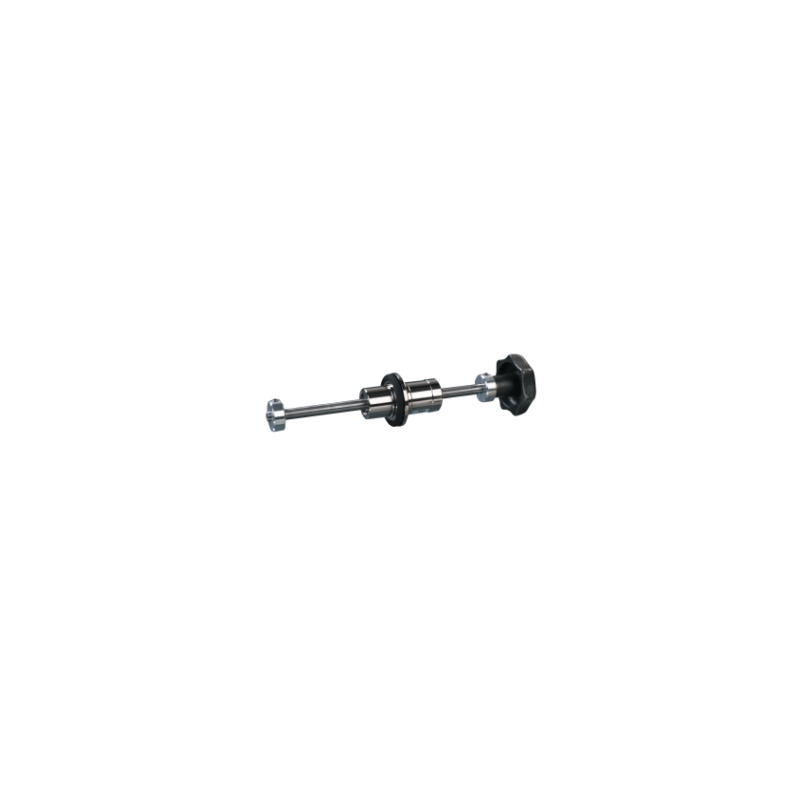

| HVC-214-320 | Rotary/linear motion feedthrough | NW16KF | € 459,00 | More info | ||
| HVC-214-322 | Rotary/linear motion feedthrough | NW25KF | € 478,00 | More info | ||
| HVC-214-324 | Rotary/linear motion feedthrough | NW40KF | € 483,00 | More info |
