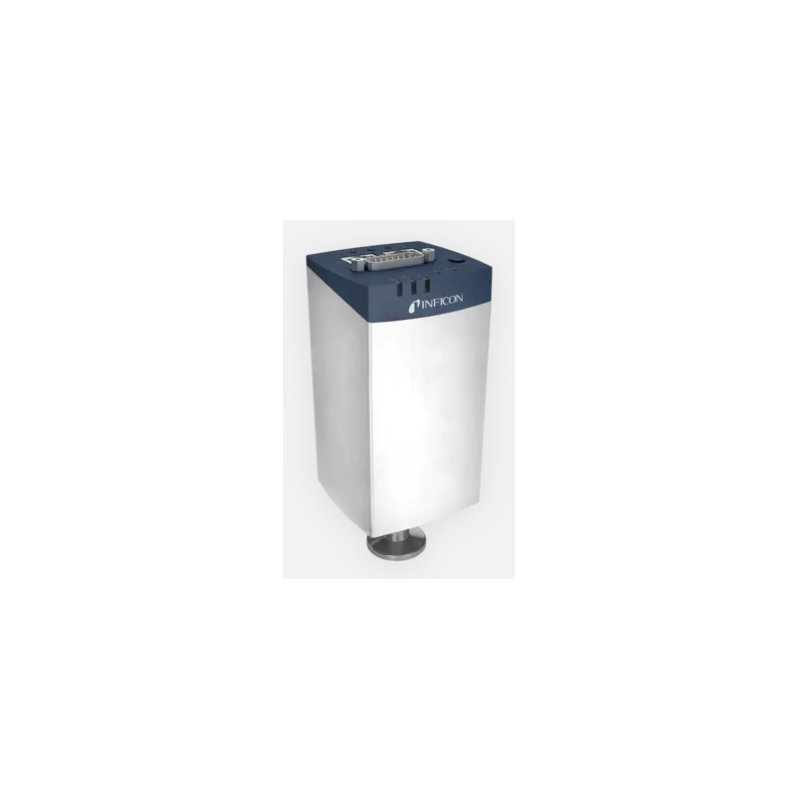

Inficon Edge® CDG045D2, 1100 mbar, DN 16 ISO-KF

INFICON Edge Capacitance Diaphragm Gauge is a highly accurate vacuum measurement instrument designed for harsh manufacturing environments.

The proven temperature controlled, corrosion resistant, ultra-pure ceramic sensor provides superior span stability over many years paired with state-of-the-art zero stability. Edge comes with the INFICON patented unique sensor shield which protects the gauge from undesired process by-products. Advanced electronics offer a wide range of configurable signal conditioning for all applications and optional EtherCAT fieldbus interface.

The innovative heating concept enables a cool to the touch surface and saves valuable tool space. INFICON Edge is the smallest vacuum measurement instrument of its kind.

CodeTypeMeasuring rangeGauge modelPrecision: % of measurement [%]Full scale (hPa)FlangePrice ex.PDFStockQtyMore info
HVC-3CC5-G61-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 DN 16 ISO-KFOn request
More info
HVC-3CC5-G63-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 DN 16 CF-ROn request
More info
HVC-3CC5-G69-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 tube OD ½”On request
More info
HVC-3CC5-G6C-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 4 VCR maleOn request
More info
HVC-3CC5-G6D-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 4 VCR femaleOn request
More info
HVC-3CC5-G6E-2300 Capacitance gauge 1 · 10-1 – 1.1 · 10*3 mbar CDG045D2 0,15 1000 8 VCR femaleOn request
More info
HVC-3CC5-C61-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 DN 16 ISO-KFOn request
More info
HVC-3CC5-C63-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 DN 16 CF-ROn request
More info
HVC-3CC5-C69-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 tube OD ½”On request
More info
HVC-3CC5-C6C-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 4 VCR maleOn request
More info
HVC-3CC5-C6D-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 4 VCR femaleOn request
More info
HVC-3CC5-C6E-2300 Capacitance gauge 1 · 10-² – 1,1 · 10² mbar CDG045D2 0,15 100 8 VCR femaleOn request
More info
HVC-3CC5-961-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 DN 16 ISO-KFOn request
More info
HVC-3CC5-963-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 DN 16 CF-ROn request
More info
HVC-3CC5-969-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 tube OD ½”On request
More info
HVC-3CC5-96C-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 4 VCR maleOn request
More info
HVC-3CC5-96D-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 4 VCR femaleOn request
More info
HVC-3CC5-96E-2300 Capacitance gauge 1 · 10-³ – 1.1 · 10 mbar CDG045D2 0,15 10 8 VCR femaleOn request
More info
HVC-3CC5-661-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 DN 16 ISO-KFOn request
More info
HVC-3CC5-663-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 DN 16 CF-ROn request
More info
HVC-3CC5-669-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 tube OD ½”On request
More info
HVC-3CC5-66C-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 4 VCR maleOn request
More info
HVC-3CC5-66D-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 4 VCR femaleOn request
More info
HVC-3CC5-66E-2300 Capacitance gauge 1 · 10-4 – 1.1E0 mbar CDG045D2 0,15 1 8 VCR femaleOn request
More info
