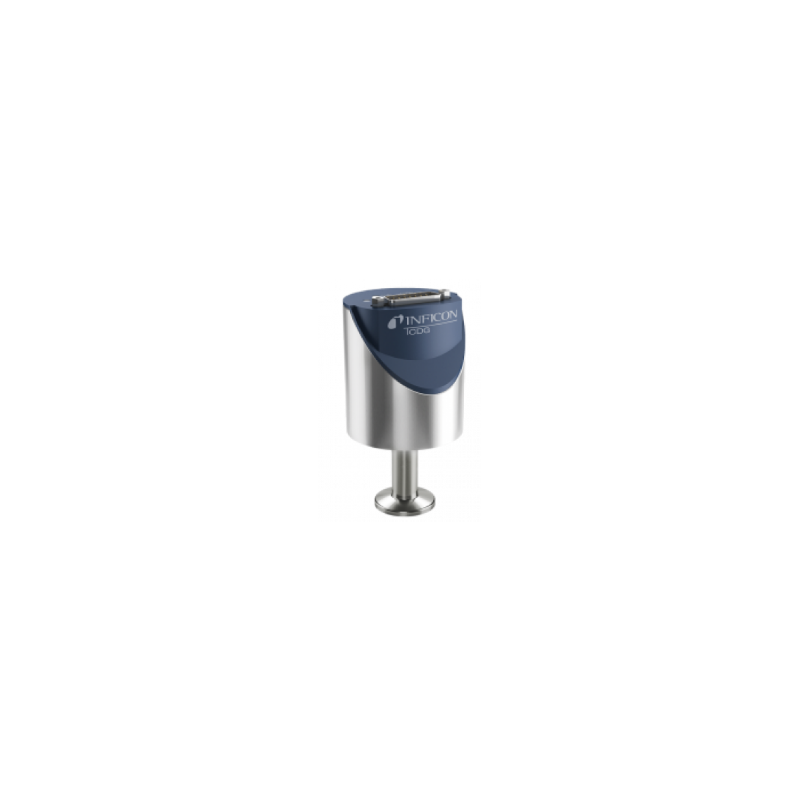

The INFICON SKY CDG025D Capacitance Diaphragm Gauge line of highly accurate temperature compensated manometers is designed for stable performance in harsh manufacturing tool environments.
Advanced digital electronics improve gauge performance and offer easy handling features such as one pushbutton zero function and setpoint adjustment. The corrosion resistant ceramic sensor provides excellent zero stability with a long life expectancy of several million pressure cycles, including atmospheric bursts. A unique sensor shielding (patent pending) protects the gauge from process contamination.
A robust mechanical design and digital electronics improve EMC compatibility, long term stability and temperature compensation. The CDG025D sets new standards for fast stability after power on and fast recovery from atmospheric pressure exposure.
| Code | Type | Measuring range | Gauge model | Precision: % of measurement [%] | Full scale (hPa) | Flange | Price ex. | Stock | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HVC-375-000 | Capacitance gauge | 1 · 10-1 – 1,1 · 10³ mbar | CDG025D | 0,2 | 1000 | Tube OD ½" | On request | More info | |||
| HVC-375-001 | Capacitance gauge | 1 · 10-1 – 1,1 · 10³ mbar | CDG025D | 0,2 | 1000 | DN 16 ISO-KF | On request | More info | |||
| HVC-375-002 | Capacitance gauge | 1 · 10-1 – 1,1 · 10³ mbar | CDG025D | 0,2 | 1000 | DN 16 CF-R | On request | More info | |||
| HVC-375-003 | Capacitance gauge | 1 · 10-1 – 1,1 · 10³ mbar | CDG025D | 0,2 | 1000 | 8 VCR female | On request | More info | |||
| HVC-376-000 | Capacitance gauge | 1 · 10-² – 1,1 · 10² mbar | CDG025D | 0,2 | 100 | Tube OD ½" | On request | More info | |||
| HVC-376-001 | Capacitance gauge | 1 · 10-² – 1,1 · 10² mbar | CDG025D | 0,2 | 100 | DN 16 ISO-KF | On request | More info | |||
| HVC-376-002 | Capacitance gauge | 1 · 10-² – 1,1 · 10² mbar | CDG025D | 0,2 | 100 | DN 16 CF-R | On request | More info | |||
| HVC-376-003 | Capacitance gauge | 1 · 10-² – 1,1 · 10² mbar | CDG025D | 0,2 | 100 | 8 VCR female | On request | More info | |||
| HVC-377-000 | Capacitance gauge | 1 · 10-³ – 1,1 · 10 mbar | CDG025D | 0,2 | 10 | Tube OD ½" | On request | More info | |||
| HVC-377-001 | Capacitance gauge | 1 · 10-³ – 1,1 · 10 mbar | CDG025D | 0,2 | 10 | DN 16 ISO-KF | On request | More info | |||
| HVC-377-002 | Capacitance gauge | 1 · 10-³ – 1,1 · 10 mbar | CDG025D | 0,2 | 10 | DN 16 CF-R | On request | More info | |||
| HVC-377-003 | Capacitance gauge | 1 · 10-³ – 1,1 · 10 mbar | CDG025D | 0,2 | 10 | 8 VCR female | On request | More info | |||
| HVC-378-000 | Capacitance gauge | 1 · 10-4 – 1.1E0 mbar | CDG025D | 0,2 | 1 | Tube OD ½" | On request | More info | |||
| HVC-378-001 | Capacitance gauge | 1 · 10-4 – 1.1E0 mbar | CDG025D | 0,2 | 1 | DN 16 ISO-KF | On request | More info | |||
| HVC-387-002 | Capacitance gauge | 1 · 10-4 – 1.1E0 mbar | CDG025D | 0,2 | 1 | DN 16 CF-R | On request | More info | |||
| HVC-378-003 | Capacitance gauge | 1 · 10-4 – 1.1E0 mbar | CDG025D | 0,2 | 1 | 8 VCR female | On request | More info | |||
| HVC-379-000 | Capacitance gauge | 1 · 10-5 – 1.1 · 10-1 mbar | CDG025D | 0,5 | 0,1 | Tube OD ½" | On request | More info | |||
| HVC-379-001 | Capacitance gauge | 1 · 10-5 – 1.1 · 10-1 mbar | CDG025D | 0,5 | 0,1 | DN 16 ISO-KF | On request | More info | |||
| HVC-379-002 | Capacitance gauge | 1 · 10-5 – 1.1 · 10-1 mbar | CDG025D | 0,5 | 0,1 | DN 16 CF-R | On request | More info | |||
| HVC-379-003 | Capacitance gauge | 1 · 10-5 – 1.1 · 10-1 mbar | CDG025D | 0,5 | 0,1 | 8 VCR female | On request | More info |
