The single-stage Value vacuum pump is designed for generating vacuum in closed systems. The VSV series pumps use a small amount of fresh air (so-called gas ballast) at the end of the vacuuming cycle, which pushes out the impurities drawn during the vacuum generation, thus preventing the risk of oil contamination. Pump inlet is equipped with a non-return valve that prevents air from entering the system after the power is switched off as well as unwanted oil suction. In addition, the pumps are equipped with an oil mist filter, thanks to which pollutants escaping during pump operation are reduced to a minimum. The devices have been designed so that the lubrication system is in the closed mode and the deposited oil in the oil mist filter flows to the device by gravity.
With a wide range of capacities from 20 to 300 m3 / h, and the use of single-phase and three-phase electric motors with outputs from 0.75 kW to 5.5 kW, the pumps have gained a wide range of applications.
Code | Pump Model | Voltage & Phases | Pumping Speed | Ultimate pressure | Price ex. | Qty | More info | |
---|---|---|---|---|---|---|---|---|

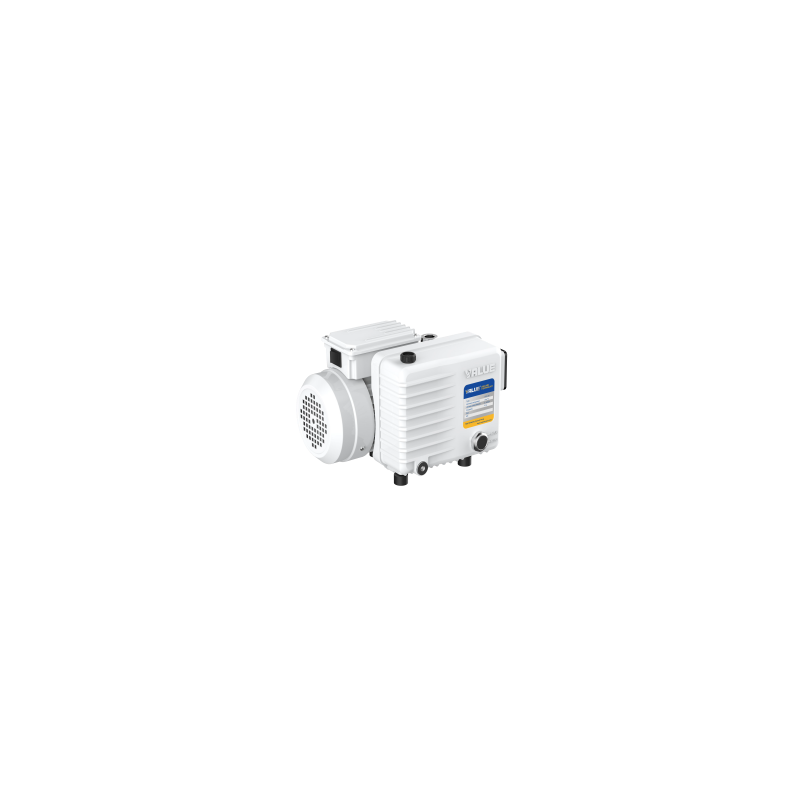

HVC-VSV-20-1ph | VSV-20 | 230V, 1ph, 50Hz | 20 m³/h | 5 · 10-1 mbar | € 1.500,00 | More info | ||
HVC-VSV-28-3ph | VSV-28 | 380V, 3ph, 50Hz | 28 m³/h | 3 · 10-1 mbar | € 1.800,00 | More info | ||
HVC-VSV-28-1ph | VSV-28 | 230V, 1ph, 50Hz | 28 m³/h | 3 · 10-1 mbar | € 1.800,00 | More info | ||
HVC-VSV-40-3ph | VSV-40 | 380V, 3ph, 50Hz | 40 m³/h | 3 · 10-1 mbar | € 2.000,00 | More info | ||
HVC-VSV-65-3ph | VSV-65 | 380V, 3ph, 50Hz | 65 m³/h | 3 · 10-1 mbar | € 2.300,00 | More info | ||
HVC-VSV-100-3ph | VSV-100 | 380V, 3ph, 50Hz | 100 m³/h | 3 · 10-1 mbar | € 2.600,00 | More info | ||
HVC-VSV-160-3ph | VSV-160 | 380V, 3ph, 50Hz | 160 m³/h | 8 · 10-2 mbar | € 3.200,00 | More info | ||
HVC-VSV-200-3ph | VSV-200 | 380V, 3ph, 50Hz | 200 m³/h | 8 · 10-2 mbar | € 3.600,00 | More info | ||
HVC-VSV-300-3ph | VSV-300 | 380V, 3ph, 50Hz | 300 m³/h | 8 · 10-2 mbar | € 4.300,00 | More info |
