Mono and Dual Stage, Oil Sealed Rotary Vane Pumps for Broad Applications
Single and dual stage series rotary vane pumps provide a wide range of pumping speeds and configurations. These pumps are ideal as backing pumps for turbo or diffusion pumps, or for standalone use in laboratory, analytical, or industrial applications.
The DS-series oil-sealed rotary vane vacuum pumps offers models with pumping speeds from 45 to 605 L/min (1,6 to 21,4 cfm), with an ultimate pressure of <2x10E-03 mbar. These DS-series pumps operate at very low noise levels.
The MS series high capacity, single stage, oil-lubricated rotary vane pumps are compact and environmentally friendly alternatives to larger industrial pumps with similar speeds. The flexible MS series features reliable components, high pumping speeds at low pressure, low noise, and easy installation.
The DS-series oil-sealed rotary vane vacuum pumps offers models with pumping speeds from 45 to 605 L/min (1,6 to 21,4 cfm), with an ultimate pressure of <2x10E-03 mbar. These DS-series pumps operate at very low noise levels.
The MS series high capacity, single stage, oil-lubricated rotary vane pumps are compact and environmentally friendly alternatives to larger industrial pumps with similar speeds. The flexible MS series features reliable components, high pumping speeds at low pressure, low noise, and easy installation.
Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Price ex. | Qty | More info | |
---|---|---|---|---|---|---|---|---|

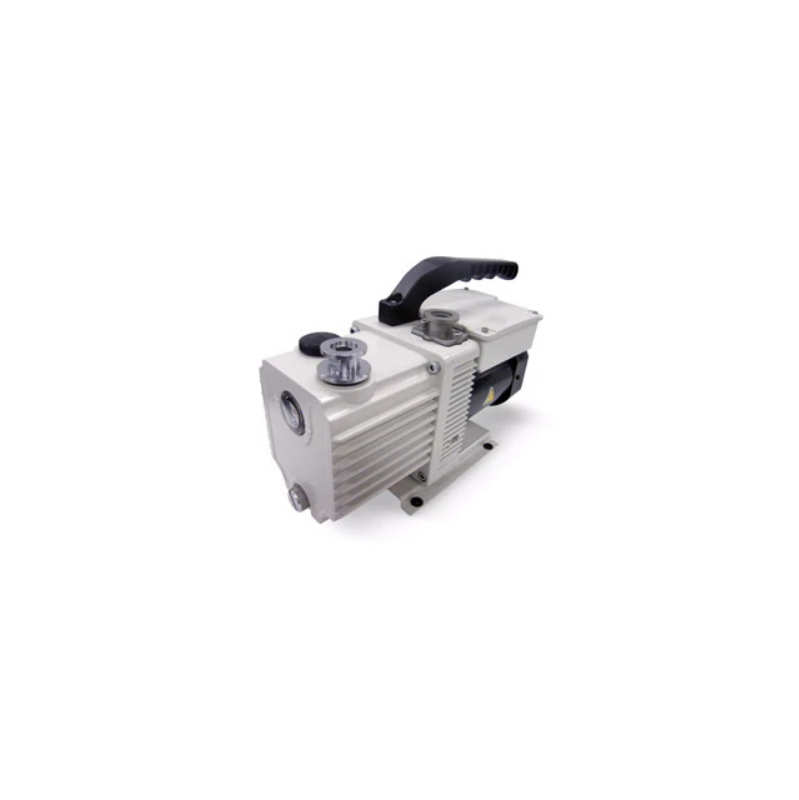

HVC-X1699-64053 | DS 40M | 220-240 VAC, 50/60Hz 1-Ø | 1.8 m³/h | 6.7 · 10-3 hPa | € 2.277,00 | More info | ||
HVC-9499315 | DS 102 | 100-120 / 220-240 VAC, 50/60Hz 1-Ø | 5 m³/h | 2 · 10-3 hPa | € 2.687,00 | More info | ||
HVC-9499320 | DS 202 | 100-120 / 220-240 VAC, 50/60Hz 1-Ø | 8.3 m³/h | 2 · 10-3 hPa | € 3.014,00 | More info | ||
HVC-9499325 | DS 302 | 100-120 / 220-240 VAC, 50/60Hz 1-Ø | 11.6 m³/h | 2 · 10-3 hPa | € 3.163,00 | More info | ||
HVC-9499330 | DS 402 | 100-120 / 220-240 VAC, 50/60Hz 1-Ø | 17.4 m³/h | 2 · 10-3 hPa | € 3.799,00 | More info | ||
HVC-9499335 | DS 602 | 100-120 / 220-240 VAC, 50/60Hz 1-Ø | 25m³/h | 2 · 10-3 hPa | € 4.815,00 | More info |
