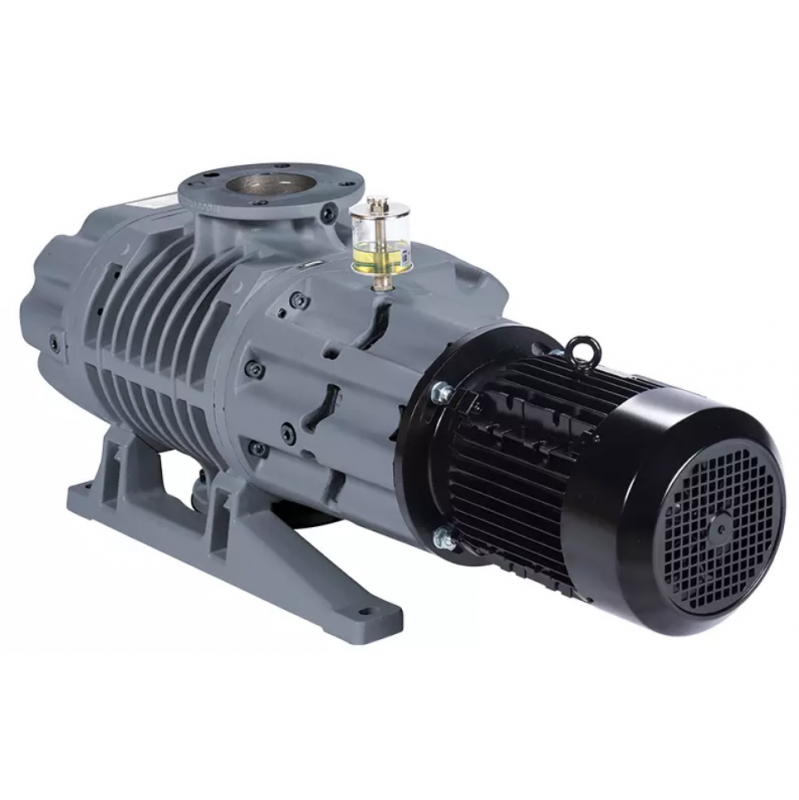

The DRB series of pumps are best suited to applications where rapid evacuations need to be achieved in the shortest possible cycle times. The most frequent use of the DRB roots vacuum booster pumps is as an enabler for smaller primary vacuum pumps.
They are designed to boost the most demanding requirements for modern vacuum-based production processes. They are generally used to increase the pumping speed of a system or with the goal of reaching a lower ultimate vacuum level.
Booster pumps are used in a wide range of applications, most commonly used in the rough vacuum range, especially when high pumping speeds and low pressures are required.
Code | Pump Model | Voltage & Phases | Nominal Pumping Speed | Cooling Method | Inlet Flange | Outlet Flange | Price ex. | Stock | Qty | More info | |
---|---|---|---|---|---|---|---|---|---|---|---|
HVC-DRB250 | DRB250 | 380-400 VAC, 50HZ 3-Ø | 253 m³/h | Air | ISO 63 | ISO 63 | On request | More info | |||
HVC-DRB500 | DRB500 | 380-400 VAC, 50HZ 3-Ø | 505 m³/h | Air | ISO 63 | ISO 63 | On request | More info | |||
HVC-DRB1000 | DRB1000 | 380-400 VAC, 50HZ 3-Ø | 1000 m³/h | Air | ISO 100 | ISO 100 | On request | More info | |||
HVC-DRB2000 | DRB2000 | 380-400 VAC, 50HZ 3-Ø | 2050 m³/h | Air | ISO 160 | ISO 160 | On request | More info |
