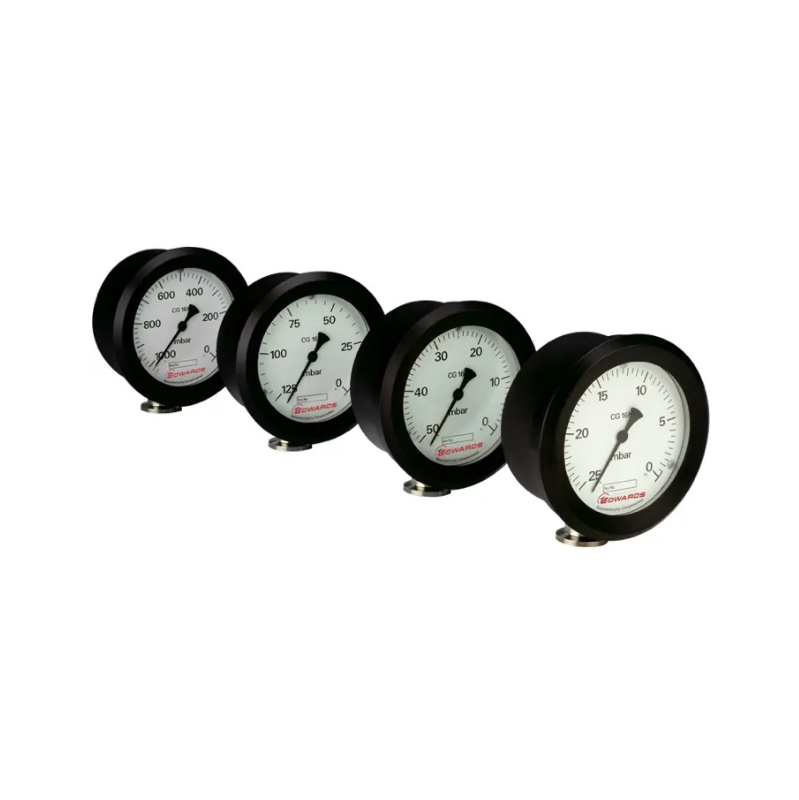

Edwards CG16K capsule dial gauges are barometrically compensated with NW flange fittings. Designed to cover the range of 0 to 1040 mbar, these robust gauges provide accurate, repeatable performance even at low pressures making them equally suited for non-corrosive process plant or for laboratory applications. Fitting is simple: the gauges can be mounted direct or panel mounted using the kit supplied.
Technology
The CG16K capsule dial gauge consist of a sealed capsule mounted inside a leak tight case, which is connected to the vacuum system. The capsule expands and contracts as the pressure changes in the case. A linkage mechanism transmits and converts this movement to a needle which traverses a calibrated scale.
For optimum results, capsule dial gauges should be located close to the pressure to be measured. Long pipe lengths may lead to pressure drops and inaccuracy.
For optimum results, capsule dial gauges should be located close to the pressure to be measured. Long pipe lengths may lead to pressure drops and inaccuracy.
Applications
- Backfilling
- Portable equipment
- Degassing
- Refrigeration
- Flammable vapours
- Upgrade from Bourdons
- Packaging
Code | Type | Measuring range | Gauge model | Precision (Full Scale) [%] | Flange | Price ex. | Stock | Qty | More info | |
---|---|---|---|---|---|---|---|---|---|---|
HVC-D35610000 | barometrically compensated dial gauges | 0 -1040 mbar | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35611000 | barometrically compensated dial gauges | 0 -125 mbar | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35612000 | barometrically compensated dial gauges | 0 -50 mbar | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35613000 | barometrically compensated dial gauges | 0 -25 mbar | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3561000C | barometrically compensated dial gauges | 0 -1040 mbar | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3561100C | barometrically compensated dial gauges | 0 -125 mbar | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3561200C | barometrically compensated dial gauges | 0 -50 mbar | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3561300C | barometrically compensated dial gauges | 0 -25 mbar | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35630000 | barometrically compensated dial gauges | 0-760 Torr | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35631000 | barometrically compensated dial gauges | 0-100 Torr | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35632000 | barometrically compensated dial gauges | 0-40 Torr | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D35633000 | barometrically compensated dial gauges | 0-20 Torr | CG16K | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3563000C | barometrically compensated dial gauges | 0-760 Torr | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3563100C | barometrically compensated dial gauges | 0-100 Torr | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3563200C | barometrically compensated dial gauges | 0-40 Torr | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info | |||
HVC-D3563300C | barometrically compensated dial gauges | 0-20 Torr | CG16K, Certificated | 2 | DN 16 ISO-KF | On request | More info |
