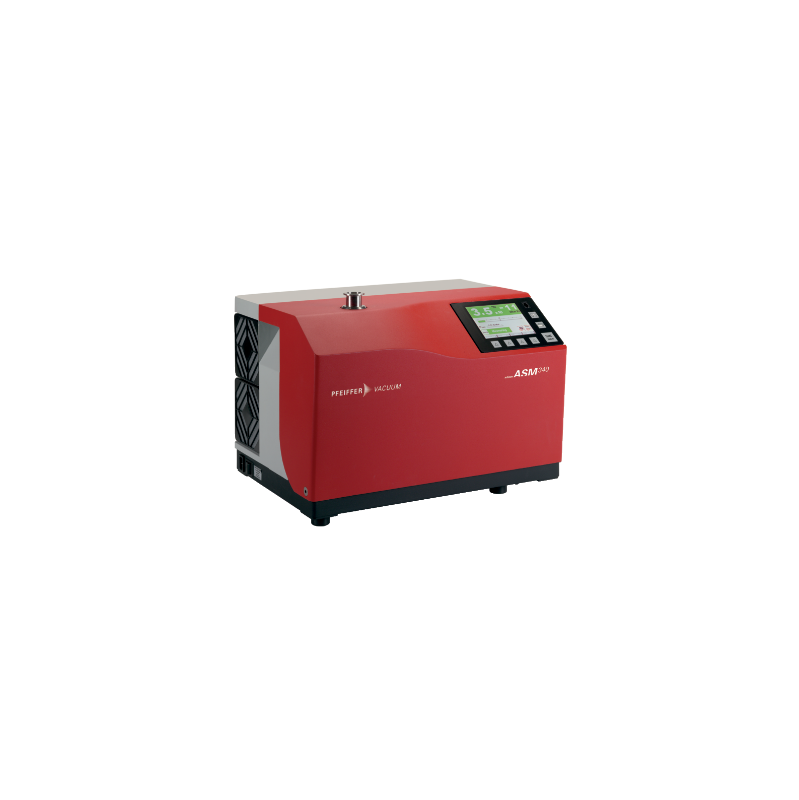

The compact leak detectors are used first and foremost for stationary applications to detect leaks and test for leak tightness. They are also portable thanks to a special leak detector cart. Compact leak detectors are used in widely ranging industries, from applications in heavy industry right up to clean room applications. In this latter case, the dry versions of the leak detectors are being used.
- Fast response time thanks to the largest primary pump (RVP) in its class
- Ability to detect large leaks between 100hPa and the inlet test pressure
- Easy operation, intuitive menu and large color touch screen
- Various languages and operating voltages available for global use
- Available with interface board for automation through an external system (PC or PLC)
- Complete range of accessories for even more convenient leak detection
Code | Model | Backing pump | Pump. Speed He | I/O interfaces | Gewicht | Price ex. | Stock | Qty | More info | |
---|---|---|---|---|---|---|---|---|---|---|
HVC-JSVA00A0MH9A | ASM 340 RS-232 | Wet 15 m3/h | 2.5 l/s | Basic 15 pins I/O | 56 kg | On request | More info | |||
HVC-JSVA00A1MH9A | ASM 340, RS-232, Bluetooth | Wet 15 m3/h | 2.5 l/s | Basic 15 pins I/O | 56 kg | On request | More info | |||
HVC-JSVA00A2MH9A | ASM 340, RS-232, USB | Wet 15 m3/h | 2.5 l/s | Configurable 37 pins I/O | 56 kg | On request | More info | |||
HVC-JSVA00A5MH9A | ASM 340, RS-232, USB, Bluetooth | Wet 15 m3/h | 2.5 l/s | Configurable 37 pins I/O | 56 kg | On request | More info | |||
HVC-KSBA02A0MM9A | ASM 340, RS-232 | Dry 3,4 m3/h | 2.5 l/s | Basic 15 pins I/O | 45 kg | On request | More info | |||
HVC-KSBA00A0MM9A | ASM 340, RS-232, Bluetooth | Dry 3,4 m3/h | 2.5 l/s | Basic 15 pins I/O | 45 kg | On request | More info | |||
HVC-KSBA00A2MM9A | ASM 340, RS-232, USB | Dry 3,4 m3/h | 2.5 l/s | Configurable 37 pins I/O | 45 kg | On request | More info | |||
HVC-KSBA00A4MM9A | ASM 340, RS-232, USB, Ethernet | Dry 3,4 m3/h | 2.5 l/s | Configurable 37 pins I/O | 45 kg | On request | More info | |||
HVC-KSBA00A5MM9A | ASM 340, RS-232, USB, Bluetooth | Dry 3,4 m3/h | 2.5 l/s | Configurable 37 pins I/O | 45 kg | On request | More info | |||
HVC-MSXA00A0MM9A | ASM 340, RS-232 | w/o Backing pump | 2.5 l/s | Basic 15 pins I/O | 32 kg | On request | More info | |||
HVC-MSXA00A1MM9A | ASM 340, RS-232, Bluetooth | w/o Backing pump | 2.5 l/s | Basic 15 pins I/O | 32 kg | On request | More info | |||
HVC-MSXA00A2MM9A | ASM 340, RS-232, USB | w/o Backing pump | 2.5 l/s | Configurable 37 pins I/O | 32 kg | On request | More info | |||
HVC-MSXA00A4MM9A | ASM 340, RS-232, USB, Ethernet | w/o Backing pump | 2.5 l/s | Configurable 37 pins I/O | 32 kg | On request | More info | |||
HVC-MSXA00A5MM9A | ASM 340, RS-232, USB, Bluetooth | w/o Backing pump | 2.5 l/s | Configurable 37 pins I/O | 32 kg | On request | More info |
