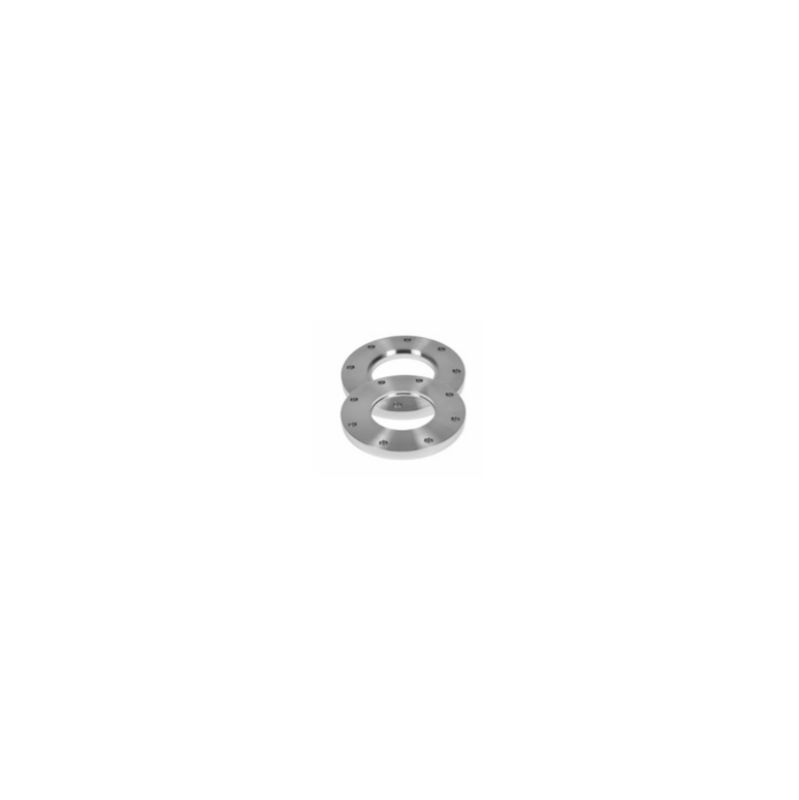

ISO-F Bored Weld Flange Stainless Steel 304
Special dimensions available upon request
| Code | Material | A (mm) | B (mm) | C (mm) | H (mm) | PCD (mm) | Bolt Holes | Dia / Thread | Type | Flange | Price ex. | Stock | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVC-ISOF63BOF | SS 304 | 130 | 63.7 | 70 | 12 | 110 | 4 | 9 | Through Holes | DN63 ISO-F | € 41,00 | More info | |||
| HVC-ISOF80BOF | SS 304 | 145 | 76.4 | 83 | 12 | 125 | 8 | 9 | Through Holes | DN80 ISO-F | € 52,00 | More info | |||
| HVC-ISOF100BOF | SS 304 | 165 | 101.8 | 102 | 12 | 145 | 8 | 9 | Through Holes | DN100 ISO-F | € 69,00 | More info | |||
| HVC-ISOF160BOF | SS 304 | 225 | 152.9 | 153 | 16 | 200 | 8 | 11 | Through Holes | DN160 ISO-F | € 125,00 | More info | |||
| HVC-ISOF200BOF | SS 304 | 285 | 203.7 | 213 | 16 | 260 | 12 | 11 | Through Holes | DN200 ISO-F | € 187,00 | More info | |||
| HVC-ISOF250BOF | SS 304 | 335 | 254.5 | 261 | 16 | 310 | 12 | 11 | Through Holes | DN250 ISO-F | € 257,00 | More info | |||
| HVC-ISOF320BOF | SS 304 | 425 | 305.5 | 318 | 20 | 395 | 12 | 14 | Through Holes | DN320 ISO-F | € 465,00 | More info | |||
| HVC-ISOF400BOF | SS 304 | 510 | 400 | 406.9 | 20 | 480 | 16 | 14 | Through Holes | DN400 ISO-F | € 810,00 | More info | |||
| HVC-ISOF500BOF | SS 304 | 610 | 501 | 508.8 | 20 | 580 | 16 | 14 | Through Holes | DN500 ISO-F | € 1.500,00 | More info | |||
| HVC-ISOF63BOFT | SS 304 | 130 | 63.7 | 70 | 12 | 110 | 4 | M8 | Tapped | DN63 ISO-F | € 45,00 | More info | |||
| HVC-ISOF80BOFT | SS 304 | 145 | 76.4 | 83 | 12 | 125 | 8 | M8 | Tapped | DN80 ISO-F | € 55,00 | More info | |||
| HVC-ISOF100BOFT | SS 304 | 165 | 101.8 | 102 | 12 | 145 | 8 | M8 | Tapped | DN100 ISO-F | € 75,00 | More info | |||
| HVC-ISOF160BOFT | SS 304 | 225 | 152.9 | 153 | 16 | 200 | 8 | M10 | Tapped | DN160 ISO-F | € 130,00 | More info | |||
| HVC-ISOF200BOFT | SS 304 | 285 | 203.7 | 213 | 16 | 260 | 12 | M10 | Tapped | DN200 ISO-F | € 195,00 | More info | |||
| HVC-ISOF250BOFT | SS 304 | 335 | 254.5 | 261 | 16 | 310 | 12 | M10 | Tapped | DN250 ISO-F | € 270,00 | More info | |||
| HVC-ISOF320BOFT | SS 304 | 425 | 305.5 | 318 | 20 | 395 | 12 | M12 | Tapped | DN320 ISO-F | € 490,00 | More info | |||
| HVC-ISOF400BOFT | SS 304 | 510 | 400 | 406.9 | 20 | 480 | 16 | M12 | Tapped | DN400 ISO-F | € 840,00 | More info | |||
| HVC-ISOF500BOFT | SS 304 | 610 | 501 | 508.8 | 20 | 580 | 16 | M12 | Tapped | DN500 ISO-F | € 1.510,00 | More info |
