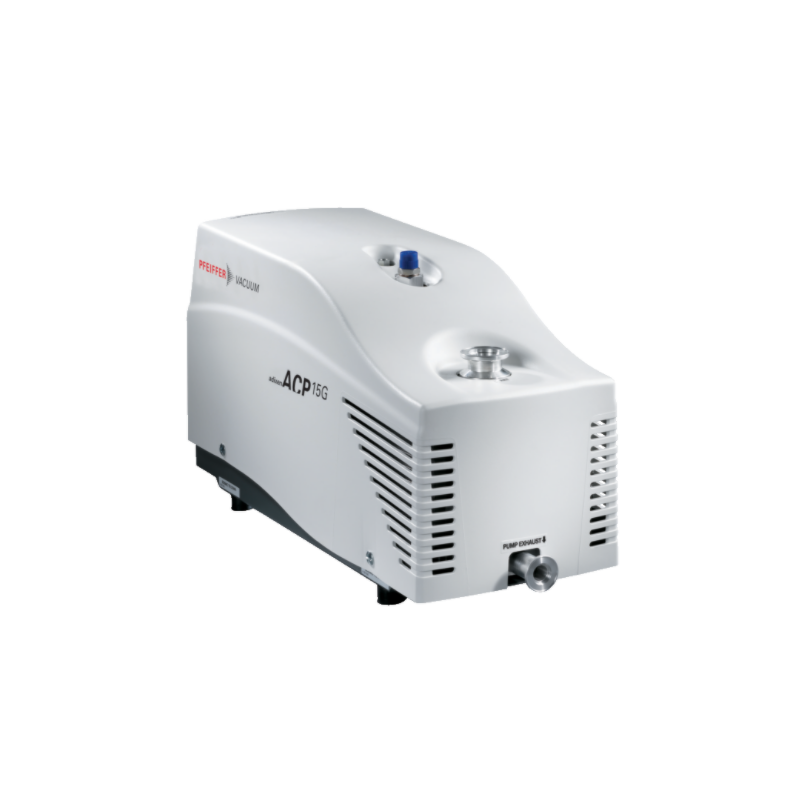

Pfeiffer Multi-stage Roots Pump G Version (ACP 15 / ACP 28 / ACP 40 / ACP 90)
G version pump is compatible with trace amounts of corrosive gases. Three jets located in the purge line help withstand trace amounts of corrosive chemicals, protect the low and high pressure ball bearings. For optimal ball bearing protection, the neutral gas pressure must be set to 0.3 bar (relative pressure) according to the flow rate value provided in technical data.
| Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Price ex. | Stock | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|
| HVC-V5GATSRGEF | ACP 15 G | 110-230 VAC, 50/60HZ 1-Ø | 14 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V5GATSRTRF | ACP 15 G | 200-400 VAC, 50/60HZ 3-Ø | 14 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V6GATSRGEF | ACP 28 G | 110-230 VAC, 50/60HZ 1-Ø | 27 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V5GATSRTRF | ACP 28 G | 200-400 VAC, 50/60HZ 3-Ø | 27 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V8GATSRGEF | ACP 40 G | 110-230 VAC, 50/60HZ 1-Ø | 37 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V8GACSTRBF | ACP 40 G | 200-400 VAC, 50/60HZ 3-Ø | 37 m³/h | 5 · 10-2 hPa | On request | More info | |||
| HVC-V9GABSAZRF01 | ACP 90 G | 200-240 VAC, 50/60HZ 1-Ø | 90 m³/h | 3 · 10-2 hPa | On request | More info | |||
| HVC-V9GABSBZRR01 | ACP 90 G | 200-240 VAC, 50/60HZ 3-Ø | 90 m³/h | 3 · 10-2 hPa | On request | More info |
= In stock
= Out of stock
= Out of stock
