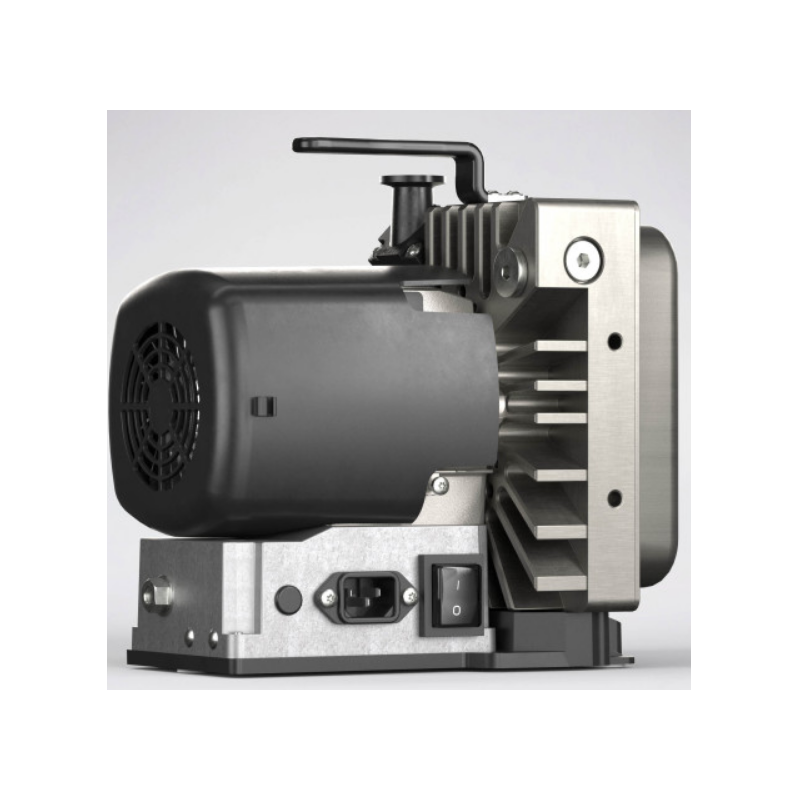

With single-phase and three-phase variants and versions for specialized applications, you can be sure to find a member of the SCROLLVAC plus family perfect for you.
- Pump versions in the range covering pumping speeds of 3, 7, 10, 15 and 18 m3/h
- Single-phase variant feature universal voltage drive for constant performance world-wide
- Three-phase electronic-free variants for radiation and high magnetic field applications
- Integrated gas ballast permits pumping of condensable vapors
- Compact and lightweight design permits simple integration into your new or existing vacuum system
| Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Price ex. | Stock | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|
| HVC-142030V330 | Scrollvac 3 plus | 230 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | € 2.700,00 | More info | |||
| HVC-142030V320 | Scrollvac 3 plus | 200 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V310 | Scrollvac 3 plus | 115 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V300 | Scrollvac 3 plus | 100 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V430 | Scrollvac 3S plus | 230 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V420 | Scrollvac 3S plus | 200 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V410 | Scrollvac 3S plus | 115 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-142030V400 | Scrollvac 3S plus | 100 VAC 1-Ø | 3 m³/h | 1 · 10-1 hPa | On request | More info | |||
| HVC-141007V10 | Scrollvac 7 plus | 115-230 VAC 1-Ø | 6.1 m³/h | 2 · 10-2 hPa | On request | More info | |||
| HVC-141010V10 | Scrollvac 10 plus | 115-230 VAC 1-Ø | 10.6 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141010V30 | Scrollvac 10 plus | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 10.6 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141010V32 | Scrollvac 10 plus C-model | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 10.6 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141015V10 | Scrollvac 15 plus | 115-230 VAC 1-Ø | 14.5 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141015V12 | Scrollvac 15 plus C-model | 115-230 VAC 1-Ø | 14.5 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141015V30 | Scrollvac 15 plus | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 14.5 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141015V32 | Scrollvac 15 plus C-model | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 14.5 m³/h | 9 · 10-3 hPa | On request | More info | |||
| HVC-141018V10 | Scrollvac 18 plus | 115-230 VAC 1-Ø | 20 m³/h | 3 · 10-2 hPa | On request | More info | |||
| HVC-141018V12 | Scrollvac 18 plus C-model | 115-230 VAC 1-Ø | 20 m³/h | 3 · 10-2 hPa | On request | More info | |||
| HVC-141018V30 | Scrollvac 18 plus | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 20 m³/h | 3 · 10-2 hPa | On request | More info | |||
| HVC-141018V32 | Scrollvac 18 plus C-model | 200/380-415 50 Hz, 200-230/460 60 Hz 3-Ø | 20 m³/h | 3 · 10-2 hPa | On request | More info |
= In stock
= Out of stock
= Out of stock
