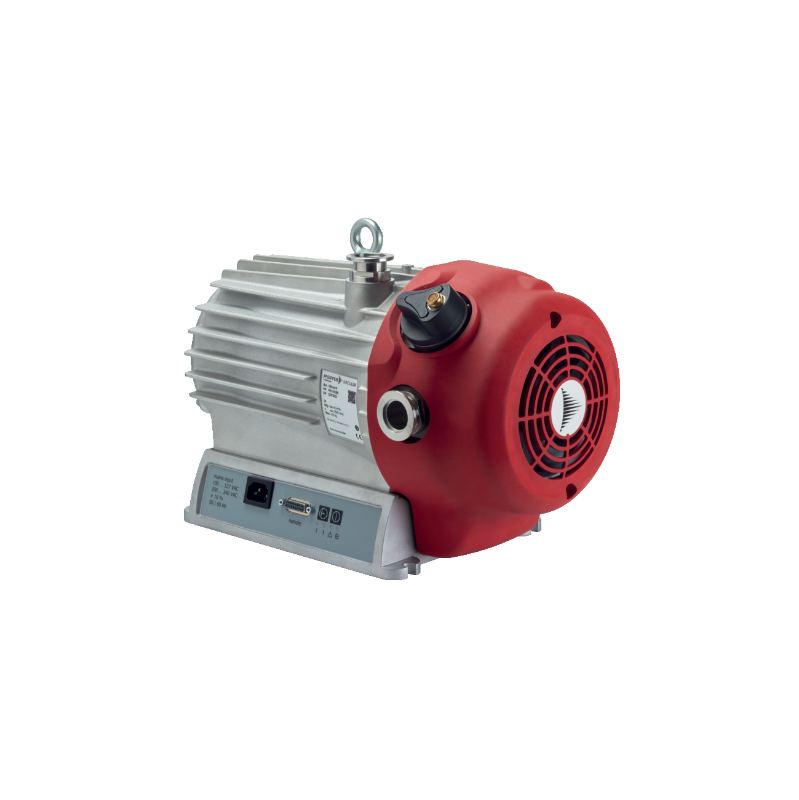

Pfeiffer HiScroll

The HiScroll series consists of three dry and hermetically sealed scroll pumps with a nominal pumping speed of 6 - 20 m3/ h. The pumps are especially characterized by their high performance when evacuating against atmosphere due to their unique features. Their powerful IPM* synchronous motors achieve an efficiency that is up to 15% higher than that of conventional drives.
The pumps are also characterized by their very compact design and extremely quiet and low-vibration operation. Therefore, they are ideal for use in quiet working environments, for example on mass spectrometers, research & development institutes or leak detection systems.
HiScroll pumps can be easily connected to other Pfeiffer Vacuum products (such as turbopumps or display and control units) as well as to a higher-level external controller, via RS-485 or ProfiNet. The interface enables RPM regulation, situation-specific control of the fan and monitoring of the pump performance. This helps to minimize wear and noise emissions, and ensures longer maintenance intervals.
CodePump ModelVoltage & PhasesPumping SpeedFinal PressurePrice ex.PDFStockQtyMore info
HVC-PDS10000 HiScroll 6 standard, incl. ATEX 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS10001 HiScroll 6, without GB, including ATEX 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS10002 HiScroll 6, with automated gas ballast 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS10010 HiScroll 6, incl. pressure sensor 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS10011 HiScroll 6, with pressure sensor, without GB 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS10012 HiScroll 6, with pressure sensor and automated GB 115-230 VAC 1-Ø 6.1 m³/h 1,5 · 10-2 hPaOn request
More info
HVC-PDS20000 HiScroll 12, standard, incl. ATEX 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS20001 HiScroll 12, without GB, including ATEX 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS20002 HiScroll 12, with automated gas ballast 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS20010 HiScroll 12, incl. pressure sensor 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS20011 HiScroll 12, with pressure sensor, without GB 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS20012 HiScroll 12, with pressure sensor and automated GB 115-230 VAC 1-Ø 12.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30000 HiScroll 18, standard, incl. ATEX 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30001 HiScroll 18, without GB, including ATEX 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30002 HiScroll 18, with automated gas ballast 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30010 HiScroll 18 standard, incl. pressure sensor 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30011 HiScroll 18, with pressure sensor, without GB 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30012 HiScroll 18, with pressure sensor and automated GB 115-230 VAC 1-Ø 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30200 HiScroll 18, three-phase motor, including ATEX 190–220 / 380–415 V AC 18.1 m³/h 6 · 10-3 hPaOn request
More info
HVC-PDS30201 HiScroll 18, three-phase motor without GB, including ATEX 190–220 / 380–415 V AC 18.1 m³/h 6 · 10-3 hPaOn request
More info
