Because of advanced customer demands the new SOGEVAC B series of rotary vane vacuum pumps is setting new standards and offers following major characteristics such as compact design and small footprint, better ultimate pressure, very low and constant noise level in any working condition, more integrated functions, improved variant concept and specific customer configurations as well as simplified maintenance.
| Code | Pump Model | Voltage & Phases | Pumping Speed | Final Pressure | Inlet Flange | Gas ballast | Oil filter | Price ex. | Qty | More info | |
|---|---|---|---|---|---|---|---|---|---|---|---|

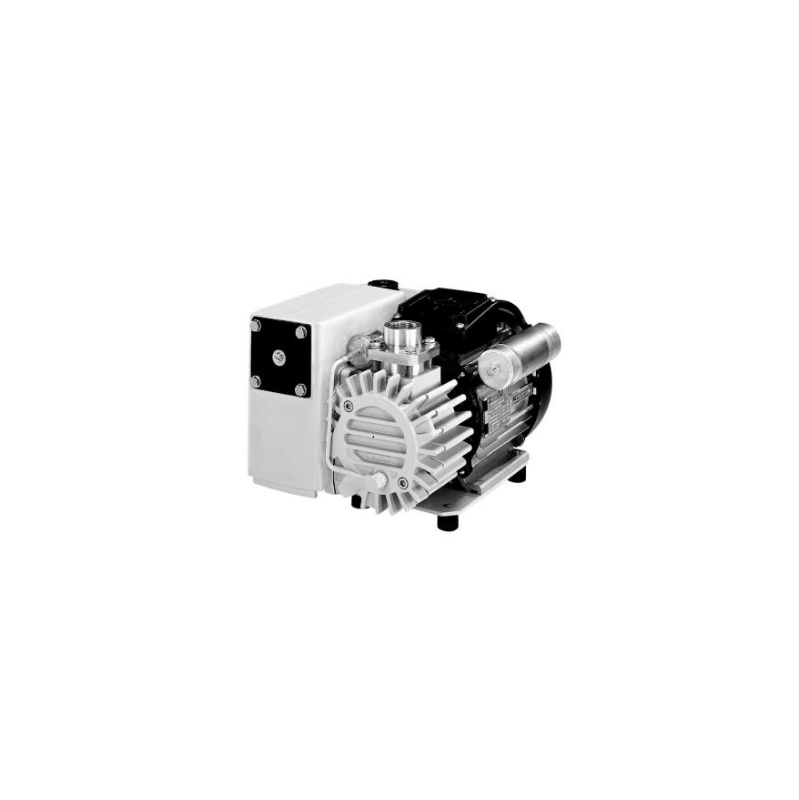

| HVC-960105 | SV 10 B | 1-ph, 230 V, 50/60 Hz | 9.5 - 11.5 m³/h | 1.5 mbar | On request | More info | |||||
| HVC-960100 | SV 10 B | 3-ph, 230/400 V, 50/60 Hz | 9.5 - 11.5 m³/h | 1.5 mbar | On request | More info | |||||
| HVC-960110 | SV 10 B | 1-ph, 115 V, 50/60 Hz | 9.5 - 11.5 m³/h | 1.5 mbar | On request | More info | |||||
| HVC-960165 | SV 16 B | 1-ph, 230 V, 50/60 Hz | 15-17 m³/h | 1 mbar | On request | More info | |||||
| HVC-960175 | SV 16 B | 3-ph, 200 V, 50/60 Hz | 15-17 m³/h | 1 mbar | On request | More info | |||||
| HVC-960160 | SV 16 B | 3-ph, 230/400 V, 50/60 Hz | 15-17 m³/h | 1 mbar | On request | More info | |||||
| HVC-960170 | SV 16 B | 1-ph, 115 V, 50/60 Hz | 15-17 m³/h | 1 mbar | On request | More info | |||||
| HVC-960255 | SV 25 B | 1-ph, 115 V, 50/60 Hz | 22.5-31 m³/h | 0.5 mbar | G3.4"+ G 1/2" internal thread | None | On request | More info | |||
| HVC-960256 | SV 25 B | 1-ph, 115 V, 50/60 Hz | 22.5-31 m³/h | 0.5 mbar | G3.4"+ G 1/2" internal thread | Standard | On request | More info | |||
| HVC-960250-1 | SV 25 B | 3-ph, 230/400 V, 50/60 Hz | 22.5-31 m³/h | 0.5 mbar | G3.4"+ G 1/2" internal thread | None | On request | More info | |||
| HVC-960251 | SV 25 B | 3-ph, 230/400 V, 50/60 Hz | 22.5-31 m³/h | 0.5 mbar | G3.4"+ G 1/2" internal thread | Standard | On request | More info | |||
| HVC-960266 | SV 25 B | 1-ph, 100 V, 50/60 Hz | 22.5-31 m³/h | 0.5 mbar | G3.4"+ G 1/2" internal thread | Standard | On request | More info | |||
| HVC-960302 | SV 40 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | None | Yes | On request | More info | ||
| HVC-960300 | SV 40 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | None | No | On request | More info | ||
| HVC-960303 | SV 40 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Small | Yes | On request | More info | ||
| HVC-960307 | SV 40 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | Yes | On request | More info | ||
| HVC-960305 | SV 40 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | No | On request | More info | ||
| HVC-960402 | SV 65 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | None | Yes | On request | More info | ||
| HVC-960407 | SV 65 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | Yes | On request | More info | ||
| HVC-960405 | SV 65 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | No | On request | More info | ||
| HVC-960424 | SV 65 B | 3-ph, 210-240 & 360-420 V, 50 Hz / 210-260 & 360-460V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | Yes | On request | More info | ||
| HVC-960422 | SV 65 B | 3-ph, 210-240 & 360-420 V, 50 Hz / 210-260 & 360-460V, 60 Hz | 39 / 47 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | No | On request | More info | ||
| HVC-960500-1 | SV 100 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 98 / 117 m3/h | 0.5 mbar | G 1 1/4" internal thread | None | No | On request | More info | ||
| HVC-960503 | SV 100 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 98 / 117 m3/h | 0.5 mbar | G 1 1/4" internal thread | Small | Yes | On request | More info | ||
| HVC-960500-2 | SV 100 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 98 / 117 m3/h | 0.5 mbar | G 1 1/4" internal thread | Small | No | On request | More info | ||
| HVC-960507 | SV 100 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 98 / 117 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | Yes | On request | More info | ||
| HVC-960505 | SV 100 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 98 / 117 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | No | On request | More info | ||
| HVC-960553 | SV 120 B | 110-120 m3/h | 0.5 mbar | G 1 1/4" internal thread | Small | Yes | On request | More info | |||
| HVC-960551 | SV 120 B | 110-120 m3/h | 0.5 mbar | G 1 1/4" internal thread | Small | No | On request | More info | |||
| HVC-960557 | SV 120 B | 110-120 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | Yes | On request | More info | |||
| HVC-960572 | SV 120 B | 110-120 m3/h | 0.5 mbar | G 1 1/4" internal thread | Standard | No | On request | More info | |||
| HVC-960602V | SV 220 B | 200 / 240 m3/h | 0.8 mbar | G 1 1/4" internal thread | On request | More info | |||||
| HVC-960617V | SV 220 B | 200 / 240 m3/h | 0.8 mbar | G 1 1/4" internal thread | On request | More info | |||||
| HVC-960717 | SV 300 B | 3-ph, 230/400 V, 50/60 Hz | 240 / 290 m3/h | 0.08 mbar | G 2" internal thread | Standard | On request | More info | |||
| HVC-960700 | SV 300 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 240 / 290 m3/h | 0.08 mbar | G 2" internal thread | None | On request | More info | |||
| HVC-960701 | SV 300 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 240 / 290 m3/h | 0.08 mbar | G 2" internal thread | Small | On request | More info | |||
| HVC-960702 | SV 300 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 240 / 290 m3/h | 0.08 mbar | G 2" internal thread | Standard | On request | More info | |||
| HVC-960703 | SV 300 B | 3-ph, 230/400 V, 50 Hz / 460 V, 60 Hz | 240 / 290 m3/h | 0.08 mbar | G 2" internal thread | Big | On request | More info | |||
| HVC-960722V | SV 320 B | 330 / 385 m3/h | 0.7 mbar | G 2" internal thread | On request | More info | |||||
| HVC-960732V | SV 320 B | 330 / 385 m3/h | 0.7 mbar | G 2" internal thread | On request | More info | |||||
| HVC-960865 | SV 630 B | 3-ph, 230/460 V, 60 Hz / 400 V, 50 Hz | 640 / 755 m3/h | 0.08 mbar | ASA 4" | On request | More info | ||||
| HVC-960862 | SV 630 B | 3-ph, 200 V, 50/60 Hz | 640 / 755 m3/h | 0.08 mbar | DN 100 ISO-K | On request | More info | ||||
| HVC-960863 | SV 630 B | 3-ph, 400/690 V, 50 Hz / 460 V, 60 Hz | 640 / 755 m3/h | 0.08 mbar | DN 100 ISO-K | On request | More info | ||||
| HVC-960867 | SV 630 BF | 3-ph, 400/690 V, 50 Hz / 460 V, 60 Hz | 640 / 755 m3/h | 0.08 mbar | On request | More info | |||||
| HVC-960869 | SV 630 BF | 3-ph, 230/460 V, 60 Hz / 400 V, 50 Hz | 640 / 755 m3/h | 0.08 mbar | On request | More info | |||||
| HVC-960875 | SV 750 B | On request | More info | ||||||||
| HVC-960877 | SV 750 BF | On request | More info |
