VD83 Compact Vacuum Meter
    search
    • VD83 Compact Vacuum Meter

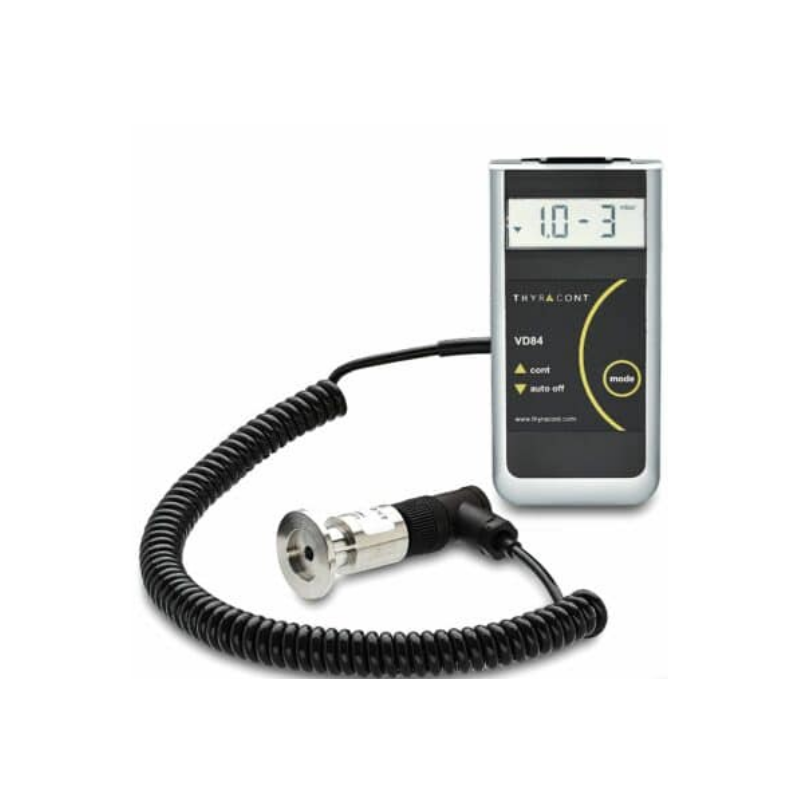

    Thyracont VD84 Compact Vacuum Meter ● Pirani, external ● 100 to 1e-3 mbar

    HVC-VD84/1

    Flexible: External, detachable Pirani sensor, ideal for complex appliances or for checking the pressure at several measuring stations e. g. for checking the vacuum insulation of liquid gas tanks

    Long-lasting: Pirani sensor with durable, elastic helix filament

    Stable: Measuring values are stable due to optimized temperature compensation

    Well protected: Integrated metal facing protects the sensor against contamination like oil vapours or solvent vapours

    Useful: Gas type correction factors for immaculate pressure readings

    € 555.00
    (tax excl.)
    Not on stock

    Request quote

    Overview VD8 vacuum meters:

    Variable: VD8 compact vacuum meters can be used as a portable instrument or for permanent installation in vacuum facilities. The gauges can be operated by a battery or a plugin power supply

    Data logger: Integrated data logger for up to 2000 measurement values

    Flexible connection: VD8 vacuum meters can be placed directly into a vacuum chamber, connected to an appliance with their flange or with a suitable adaptor

    Min/Max memory function: Storage of minimum and maximum pressures achieved during measurement

    Long battery livetime: Due to cycled measurements, the compact vacuum meter reaches a high battery lifetime; the user can choose between automatic switch off (time adjustable) for battery saving or continuous operation

    Pressure units: mbar, Torr, hPa

    Data export: USB interface for easy push button data transfer to PCs, but no PC connection is necessary during measurements

    VacuGraphTM Windows Software: To visualize, analyze and save measurements on a PC (lite version free of charge)

    Type
    Pirani gauge
    Measuring range
    100 - 1x10-3 mbar
    Gauge model
    VD84/1
    Flange
    DN16 ISO KF
