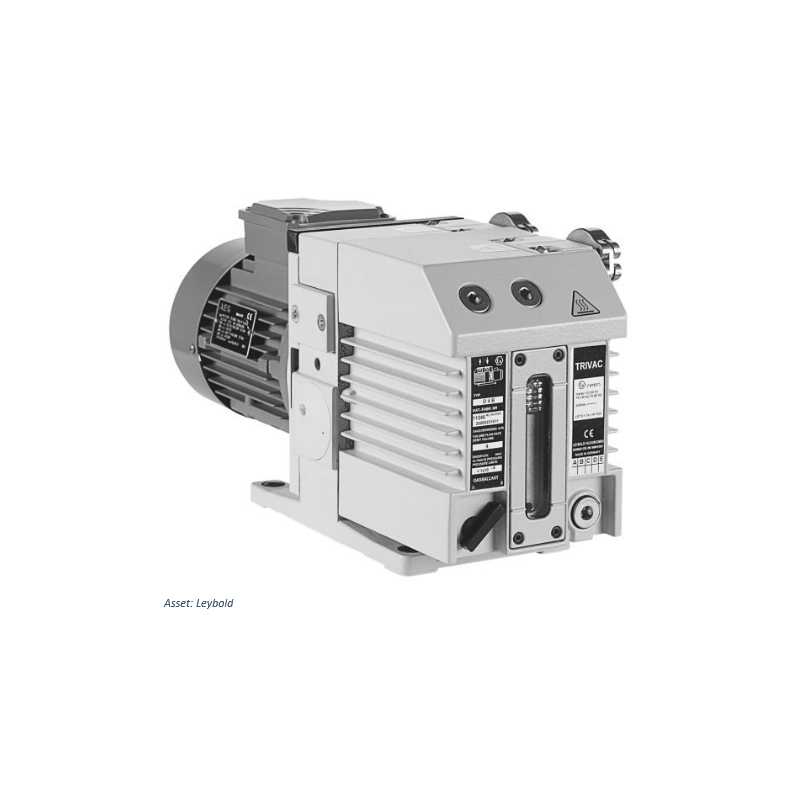

Leybold D65b (65 m3/h)
HVC-11296
Two-stage rotary vane vacuum pumps
The TRIVAC B are oil-sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling. The pump body is composed of individual parts without sealing elements. These are pinned to ensure easy disassembly and assembly.
- Pump Model
- D65b
- Voltage & Phases
- 230/400 VAC, 50/60Hz 3-Ø
- Pumping Speed
- 65 m³/h
- Final Pressure
- 2 · 10-3 hPa
Two-stage rotary vane vacuum pumps
The TRIVAC B are oil-sealed vacuum pumps based on the rotary vane principle. The oil injected into the pump chamber is used for sealing, lubrication and cooling. The pump body is composed of individual parts without sealing elements. These are pinned to ensure easy disassembly and assembly.
