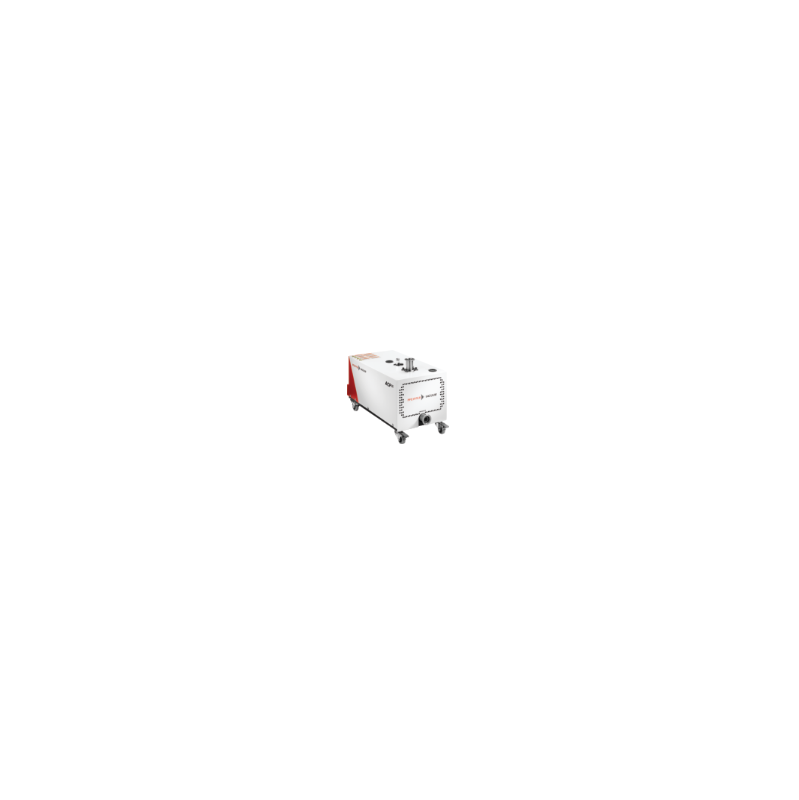

Pfeiffer ACP 90, standard, single phase, manual gasballast
HVC-V9SABSAZMR01
- Dry multi-stage Roots technology,SD versions, ACP pumps with a pumping speed of max. 90 m3/h. High pumping speed at high pressure.
- No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
- No hydrocarbon vapor backstreaming: ACP series pumps are free of lubricant inside the pumping module
- Constant performances (Pumping speed and ultimate pressure)
- Low maintenance cost. No annual maintenance. Maintenance of low pressure bearings can be done on-site
- Thanks to high flow gas ballast combined with chemical resistant pump material: SD version is capable to evacuate up to 2.4 Kg/h of water vapor.
- Pump Model
- ACP 90
- Voltage & Phases
- 200-240 VAC, 50/60HZ 1-Ø
- Pumping Speed
- 90 m³/h
- Final Pressure
- 3 · 10-2 hPa
- Dry multi-stage Roots technology,SD versions, ACP pumps with a pumping speed of max. 90 m3/h. High pumping speed at high pressure.
- No particle contamination, thanks to frictionless design: no wearing parts in the pumped gases path
- No hydrocarbon vapor backstreaming: ACP series pumps are free of lubricant inside the pumping module
- Constant performances (Pumping speed and ultimate pressure)
- Low maintenance cost. No annual maintenance. Maintenance of low pressure bearings can be done on-site
- Thanks to high flow gas ballast combined with chemical resistant pump material: SD version is capable to evacuate up to 2.4 Kg/h of water vapor.
