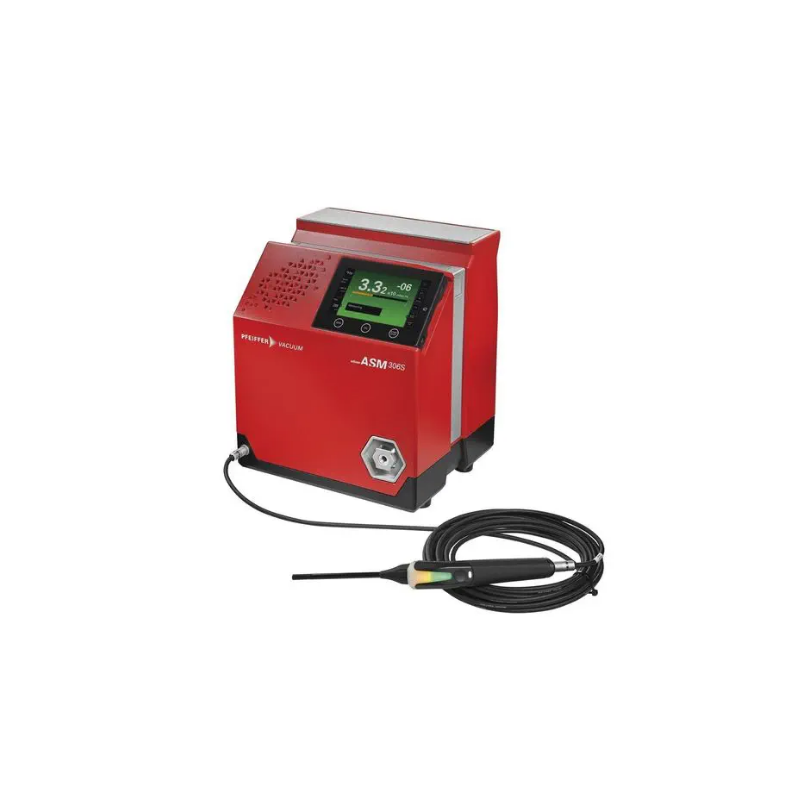

ASM 306 S, configurable I/O interface board, Ethernet
HVC-RSAS00A4MM9A
- Highest reliability and accuracy for full-time testing operation
- Fast, repeatable and high sensitivity measurements
- Compact unit with intuitive menu for easy operation
- Fully configurable I/O interface (37 pins D-Sub) for control via PCs/PLCs
- Ethernet communication (to create an additional communications port)
- Probe and test leak to be ordered separately
| Backing pump | with oil-free backing pump |
| Dimensions (L x W x H) | 350 x 305 x 421 mm | 13.78 x 12.01 x 16.57 inch |
| I/O interfaces | Configurable 37 pins I/O |
| Interface: Connection, device side | Configurable 37 pins I/O |
| Minimum detectable leakage rate for helium (sniffing leak detection) | 1 · 10-8 Pa m3/s | 7.5 · 10-8 Torr l/s | 1 · 10-7 mbar l/s |
| Operating temperature | 10-40 °C | 50-104 °F | 283-313 K |
| Power consumption max. | 300 VA |
| Sound pressure level | 55 dB(A) |
| Start-up time (20°C) without calibration | 2 min |
| Supply | 100 – 240 V, 50/60 Hz |
| Test method | Sniffing leak detection |
| User interface | High resolution graphic color touch screen (detachable) |
| Weight | 22 kg | 48.5 lb |
- Model
- ASM 306 S
- I/O interfaces
- Configurable 37 pins I/O
- Weight
- 22 kg
- Highest reliability and accuracy for full-time testing operation
- Fast, repeatable and high sensitivity measurements
- Compact unit with intuitive menu for easy operation
- Fully configurable I/O interface (37 pins D-Sub) for control via PCs/PLCs
- Ethernet communication (to create an additional communications port)
- Probe and test leak to be ordered separately
